| Front Surround System |
| General |
Drivers |

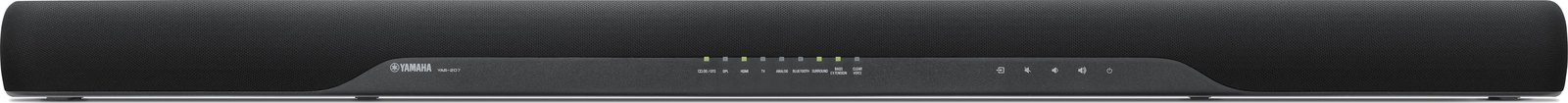

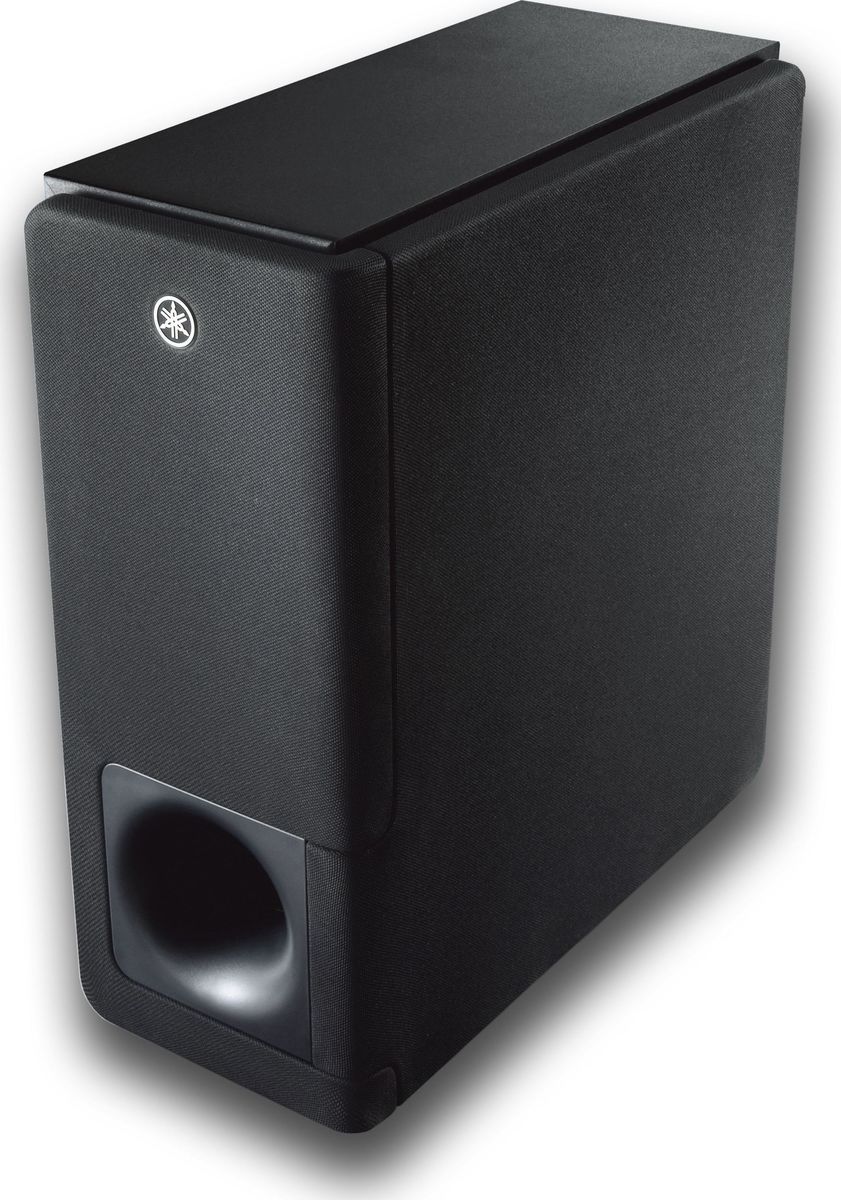

(Centre Unit) : Four 4.6 cm (1-3/4”) woofers, Dual 2.5 cm (1") tweeters, (Subwoofer) : 16 cm (6-1/4”) cone woofer |
| Output Power |
200W total power: 100 W + 100 W subwoofer |
| Power Consumption |
(Centre Unit) : 30 W, (Subwoofer) : 19 W |
| Standby Power Consumption |
(Centre Unit) : 0.4 W (HDMI control, Bluetooth standby off), 0.9 W (HDMI control on, Bluetooth standby off), 0.5 W (HDMI control off, Bluetooth standby on), 0.9 W (HDMI control on, Bluetooth standby on) |
| Dimensions (W x H x D) |
(Centre Unit) : 930 x 60 x 108 mm; 36-5/8” x 2-3/8” x 4-1/4”, (Subwoofer) : 180 x 437 x 401 mm; 7-1/8” x 17-1/4” x 15-3/4” |
| Weight |
(Centre Unit) : 2.7 kg; 6.0 lbs, (Subwoofer) : 7.9 kg; 17.4 lbs |
| Input / Output |
HDMI |
1 in / 1 out |
| Digital Optical |
1 in |
| Analog Audio |
1 in |
| HDMI |
4K Pass-through |
Yes (50 / 60 Hz YCbCr=4:4:4, HDR, HDCP2.2) |
| 3D Pass-through |
Yes |
| ARC |
Yes |
| CEC |
Yes |
| Auto Lip-Sync |
Yes |
| Sound Technology |
Surround Technology |
DTS Virtual:X |
| Surround Mode |
Music, TV program, Movie, Sport, Game |
| Compressed Music Enhancer |
Yes (for Bluetooth®) |
| Bass Extended |
Yes |
| Audio Formats |
Dolby Digital |
Yes |
| Dolby Pro Logic II |
Yes |
| DTS Digital Surround |
Yes |
| Connectivity |
Wireless Music Streaming |
Yes (with Bluetooth) |
| Bluetooth Version/Profile |
(Version) Ver. 4.1 + EDR (Profile) A2DP, SPP (Audio Codec) SBC, MPEG AAC |
| Bluetooth Maximum Communication Range |
10 m ; 33 ft (*without obstructions) |
| Wireless Subwoofer |
Yes |
| Other Features |
App Control |
Yes |
