SR-B40A |
SR-B30A |
SR-B20A |
| Μπροστινό σύστημα Surround |
|
|
|
|
| Γενικά |
Drivers |
Κεντρική μονάδα: Front L/R: 4.6 cm (1.8“) cone x 4, Tweeter: 2.5 cm (1") dome x 2, Subwoofer: 16 cm (6-1/4") cone x 1 |
Front L/R: 4.6 cm (1.8") cone x 4, Tweeter: 2.5cm (1") dome x 2, Built-in subwoofer: 7.5 cm (3") cone x 1 |
120 W (Front L/R: 30 W x 2-ch,?Built-in subwoofer: 60 W) |
| |
Ισχύς εξόδου |
200 W (Front L/R: 50 W x 2-ch,?Subwoofer: 100 W) |
23 W |
25 W (Rated) |
| |
Κατανάλωση ενέργειας |
Center unit: 25 W, Subwoofer: 20 W |
23 W |
25 W (Rated) |
| |
Κατανάλωση ρεύματος σε κατάσταση αναμονής |
Κεντρική μονάδα: 0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on) Subwoofer: 0.8 W |
0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on) |
0.2 W (HDMI control off, Bluetooth standby off), 0.5 W (HDMI control on, Bluetooth standby on) |
| |
Διαστάσεις (Π x Υ x Β) |
Κεντρική μονάδα: 910 x 68 ? 133 mm (35-7/8” x 2-5/8” x 5-1/4”), Subwoofer: 194 x 419 x 407 mm (7-5/8” x 16- 1/2" x 16") |
Εγκατάσταση της μονάδας μπροστά από τηλεόραση: 910 x 68 x 133 mm (35-7/8" x 2-5/8" x 5-1/4"), Τοποθέτηση της μονάδας σε τοίχο με αποστάτες: 910 x 66 x 139 mm (35-7/8" x 2-5/8" x 5-1/2") |
Εγκατάσταση της μονάδας μπροστά από τηλεόραση: 910 x 53 x 131 mm (35-7/8" x 2-1/8" x 5-1/8"), Τοποθέτηση της μονάδας σε τοίχο με αποστάτες: 910 x 131 x 62 mm (35-7/8" x 5-1/8" x 2-1/2") |
| |
Βάρος |
Κεντρική μονάδα: 2.9 kg (6.4lbs), Subwoofer: 8.1 kg (17.9lbs) |
3.9 kg (8.6 lbs) |
3.2 kg (7.1 lbs) |
| Είσοδοι-έξοδοι |

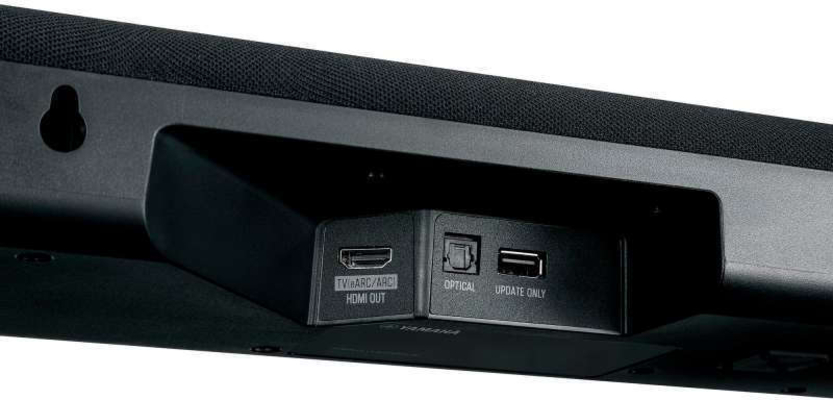

HDMI |
1 out (eARC) |
1 out (eARC) |
1 out (TV ARC) |
| |
Digital Optical |
Nαι |
Nαι |
Nαι |
| |
Subwoofer output |
No |
Nαι |
Nαι |
| |
Analog Audio |
No |
No |
No |
| HDMI |
4K Pass-through |
No |
No |
No |
| |
eARC/ARC |
eARC/ARC |
eARC/ARC |
- |
| |
CEC |
Nαι |
Nαι |
Nαι |
| |
Auto Lip-Sync |
No |
No |
No |
| |
3D Pass-through |
- |
- |
No |
| |
ARC |
- |
- |
Nαι |
| Τεχνολογία ήχου |
Surround Technology |
Dolby Atmos |
Dolby Atmos |
DTS® Virtual:X™ |
| |
Surround Mode |
Stereo, Standard, Movie, Game |
Stereo, Standard, Movie, Game |
Stereo, Standard, Movie, Game |
| |
Compressed Music Enhancer |
΄Oχι |
΄Oχι |
Yes (for Bluetooth) |
| |
Bass Extension |
Nαι |
Nαι |
Nαι |
| Audio Formats |
Dolby Digital |
Nαι |
Nαι |
Nαι |
| |
Dolby Pro Logic II |
΄Oχι |
΄Oχι |
Nαι |
| |
DTS Digital Surround |
΄Oχι |
΄Oχι |
Nαι |
| |
File Format |
- |
- |
- |
| Συνδεσιμότητα |
Wireless Music Streaming |
΄Oχι |
΄Oχι |
΄Oχι |
| |
Wi-Fi |
΄Oχι |
΄Oχι |
΄Oχι |
| |
MusicCast Surround |
΄Oχι |
΄Oχι |
΄Oχι |
| |
AirPlay |
΄Oχι |
΄Oχι |
΄Oχι |
| |
Bluetooth Version/Profile |
Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC |
Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC |
Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC |
| |
Bluetooth Maximum Communication Range |
Approx. 10 m ; 33ft (without obstructions) |
Approx. 10 m ; 33ft (without obstructions) |
Approx. 10 m ; 33ft (without obstructions) |
| |
Aσύρματο Subwoofer |
Nαι |
΄Oχι |
΄Oχι |
| ΄Aλλα χαρακτηριστικά |
App Control |
Ναι (Τηλεχειριστήριο Sound Bar) |
Ναι (Τηλεχειριστήριο Sound Bar) |
Ναι (Τηλεχειριστήριο Sound Bar) |
| |
Learning Function |
΄Oχι |
΄Oχι |
΄Oχι |
