Dimensions and Weight
Dimensions：8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)
Weight：(3.13 lbs) 1.42 kg

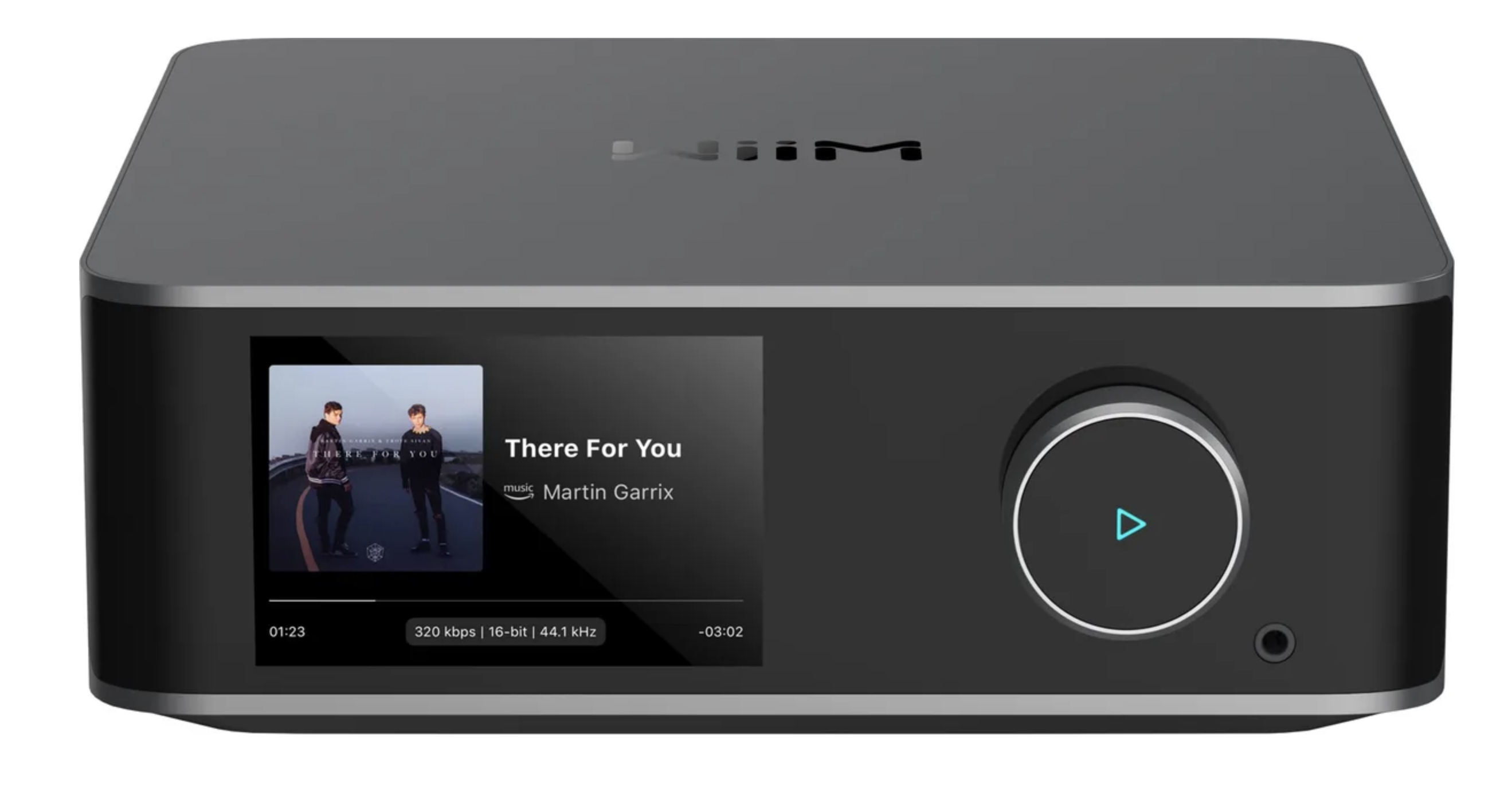

Touch Display
Glass-covered 3.5" vibrant touchscreen display:
Displays App widgets, large album pictures, playback control, playing queue.presets, EO, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode

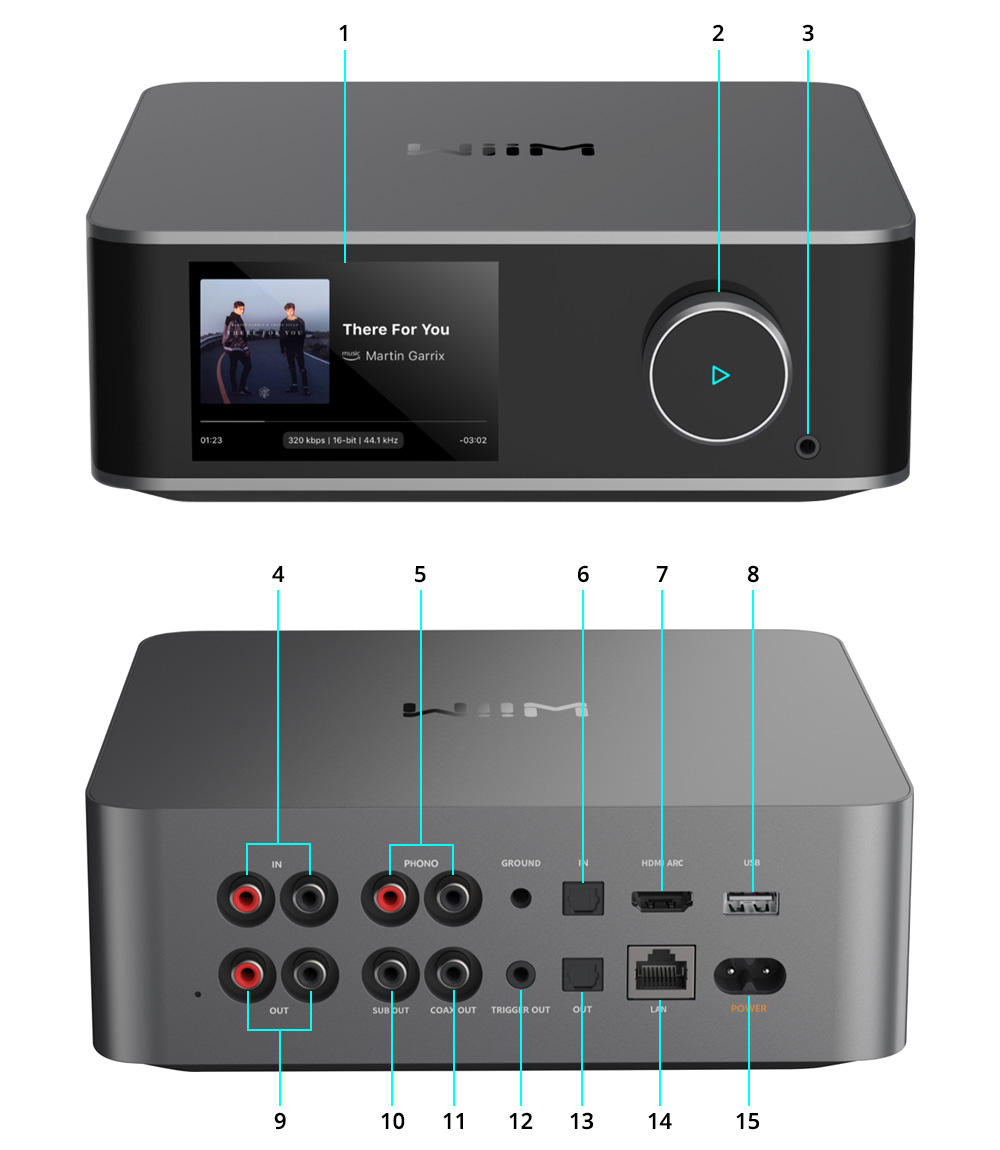

Controls
Volume knob, play/pause, setup, and more
LED
4 Color RGBW LED indicates the device status
Audio Input
HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz
Audio Output
RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bit
Wireless to another BT, DLNA receiver
Performance
Line out：
Maximum output: 2.1V RMS
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB
Headphone out：
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)

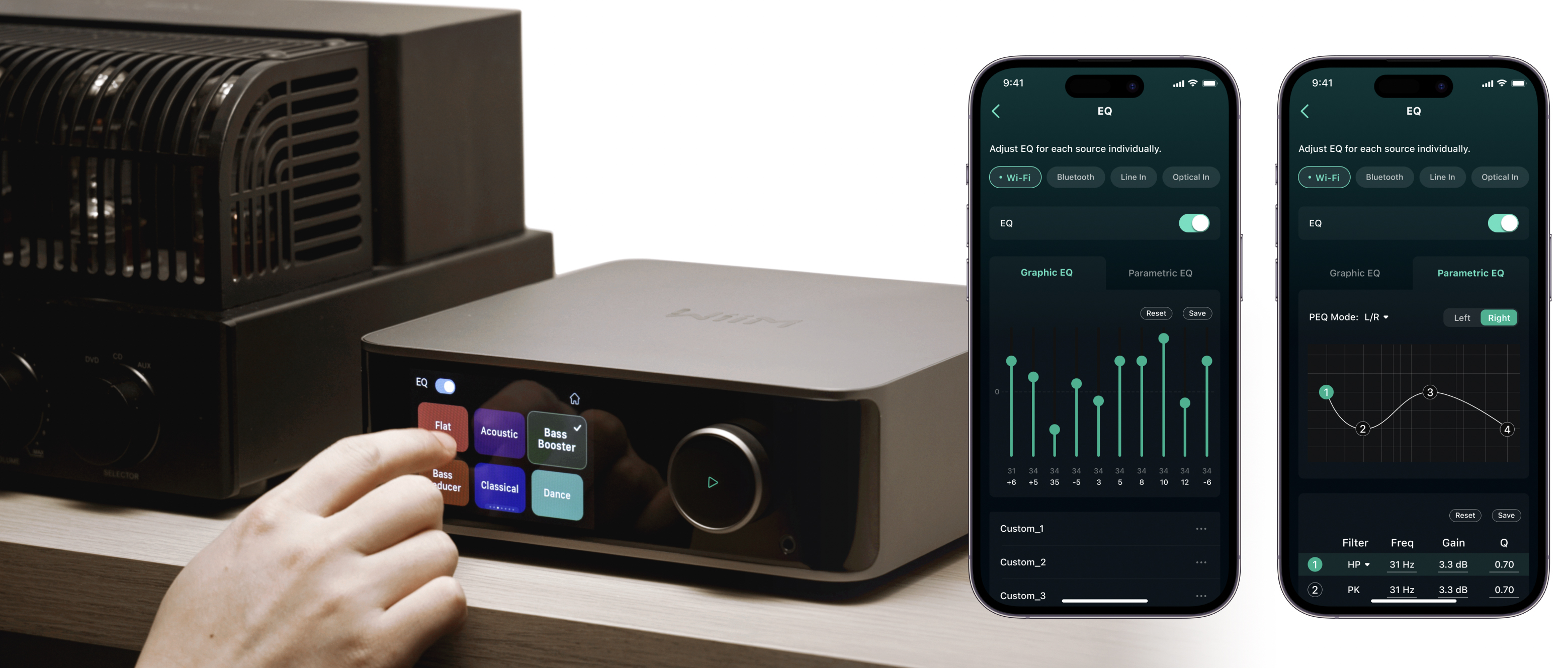

EQ
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ
Subwoofer Output
Comprehensive bass management
Adjustable crossover frequency, level, phase, and latency.
Power Supply
100-240V AC input, 50/60 Hz, 0.5A Max
Network
Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
10M/100 Mbps LAN
External Storage
Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
Bluetooth
Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.
Supported Streaming
Protocol
Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Squeezelite
