Accurate Digital Technology
JENO Engine (Jitter Elimination and Noise-shaping Optimization) Load Adaptive Phase Calibration High-speed Silent Linear power supply Battery Driven Clock Generator High Rigidity Metal Double Chassis

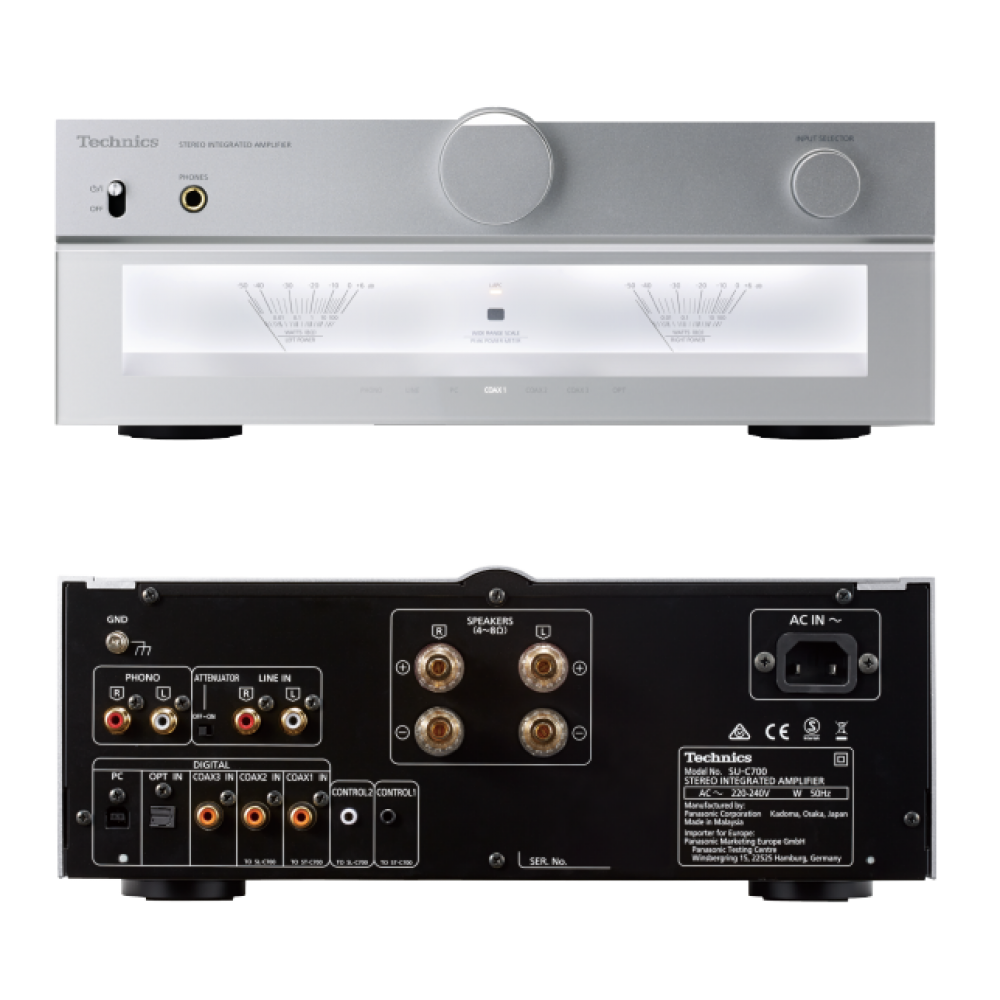

Technics Definitive Design
High Rigidity Aluminium Cabinet White LED Illuminated Large Level Meter Symmetric Structure
Output Power
45 W + 45 W (1 kHz, T.H.D. 0.3%, 8 Ω, 20 kHz LPF) 70 W + 70 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)
Input Sensitivity / Input Impedance
LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV/47 kΩ
Frequency Response
LINE 20 Hz - 80 kHz (-3 dB, 8 Ω), PHONO(MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω), COAXIAL1/2/3, 20 Hz - 90 kHz (- 3 dB, 8 Ω)
Load Impedance: 4-16 Ω
Analogue Input Terminal: LINE x 1, PHONO(MM) x 1
Digital Input Terminal: Coaxial Digital x 3, Optical Digital, USB-B
USB-DAC (USB-B)
USB Audio Class Specification: USB Audio Class 2.0, Asynchronous Mode
Support Codec
DSC: Yes (2.8224 MHz, 5.6448 MHz) PCM: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
Headphone Output: Yes
System Port: System Control Input/Output (Φ3.5 mm Jack)
Power Supply: AC220-240 V, 50 Hz/60 Hz
Power Consumption: 73 W
Dimensions (W x H x D): 340 x 132 x 325 mm
Weight: Approx. 8.3 kg
Accessories: Remote Control, AC Cord, Operating Instructions
Note: "Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
