Ο Shanling CA80 είναι ένας ιδιαίτερα ευέλικτος ενσωματωμένος ενισχυτής, CD player και DAC. Εκτελεί αυτές τις εργασίες άψογα, χάρη στην σχολαστική αρχιτεκτονική και τα εξαρτήματα υψηλής ποιότητας, που του επιτρέπουν να αποδίδει καθαρή, ακριβή αναπαραγωγή ήχου. Παρά το συμπαγές του μέγεθος, προσφέρει απίστευτη ευελιξία, καθιστώντας το CA80 ένα πραγματικό κεντρικό στοιχείο οποιουδήποτε συστήματος ήχου HiFi.
Class D amplifier
The CA80's efficient and powerful Class D amplification stage is based on an ICEPower 100AS2 module. In addition to high efficiency, this module delivers power ratings of 2x100W at 4 Ohm or 2x50W at 8 Ohm. What's more, it ensures impeccable sound quality, with precise, dynamic reproduction.
ES9219MQ DAC
The CA80's digital-to-analog conversion section uses an ESS Sabre ES9219MQ DAC for first-rate decoding. This configuration offers both clarity and power for an optimal musical experience. This chip also supports high sampling rates, up to PCM 32bit 384kHz and DSD256. What's more, it is capable of decoding MQA streams, guaranteeing sound quality as close as possible to studio recording.
CD player & USB input
The front panel of the CA80 features a Philips CD player, using Sanyo HD860 laser technology to ensure optimum playback of your audio CDs. Playback quality is enhanced by the integration of an Ingenic X1000 microprocessor, providing the player with significant data processing power.
The CA80 also features a USB input. This allows playback of high-resolution audio files up to PCM 32bit 384kHz and DSD256.
Bluetooth 5.0
With its Bluetooth 5.0 module, the Shanling CA80 is able to receive audio streams wirelessly, from a smartphone or tablet for example, for practical and intuitive use. It also supports the high-resolution LDAC audio codec, ensuring high-quality wireless transmission and playback.
Comprehensive connectivity
The versatile Shanling CA80 features an additional RCA input, transforming it into a true integrated amplifier. This means you can connect a wide range of sources. In addition, the device offers several output modes, from Optical Toslink to RCA pre-out. The front panel of the CA80 even features an amplified 3.5mm jack output for headphone listening.
Eddict Player app
The amplifier can be controlled remotely via its remote control or the free Eddict Player mobile app, available for both Android and iOS. In addition to managing playback, the latter offers access to the device's various functions.

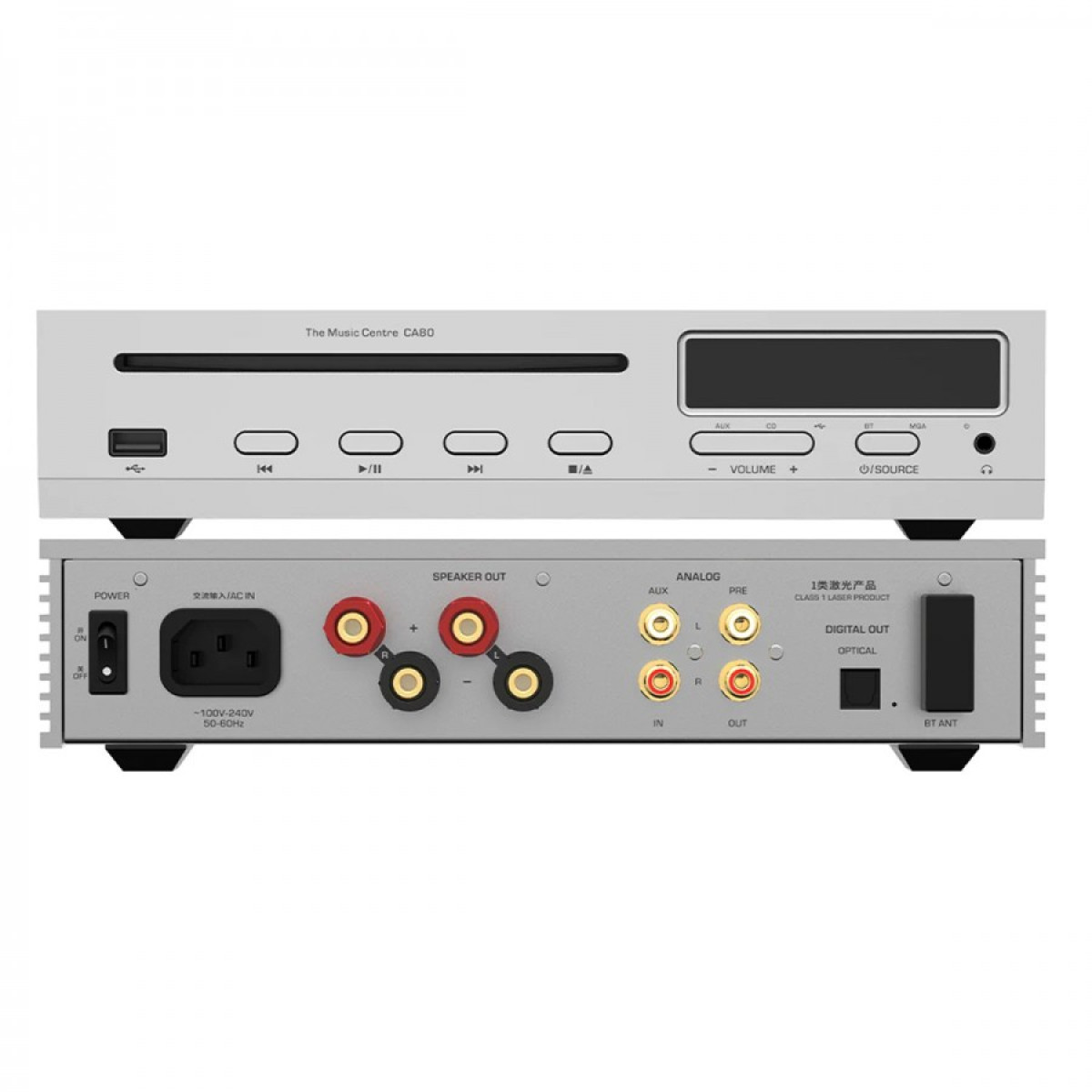

| 1 |
CD player |
| 2 |
Volume display |
| 3 |
IR receiver |
| 4 |
Screen |
| 5 |
USB input |
| 6 |
Previous track |
| 7 |
Play / Pause |
| 8 |
Next track |
| 9 |
Stop / Eject |
| 10 |
Volume |
| 11 |
Power / Input selection button |
| 12 |
Status indicator |
| 13 |
Jack 3.5mm headphone output |

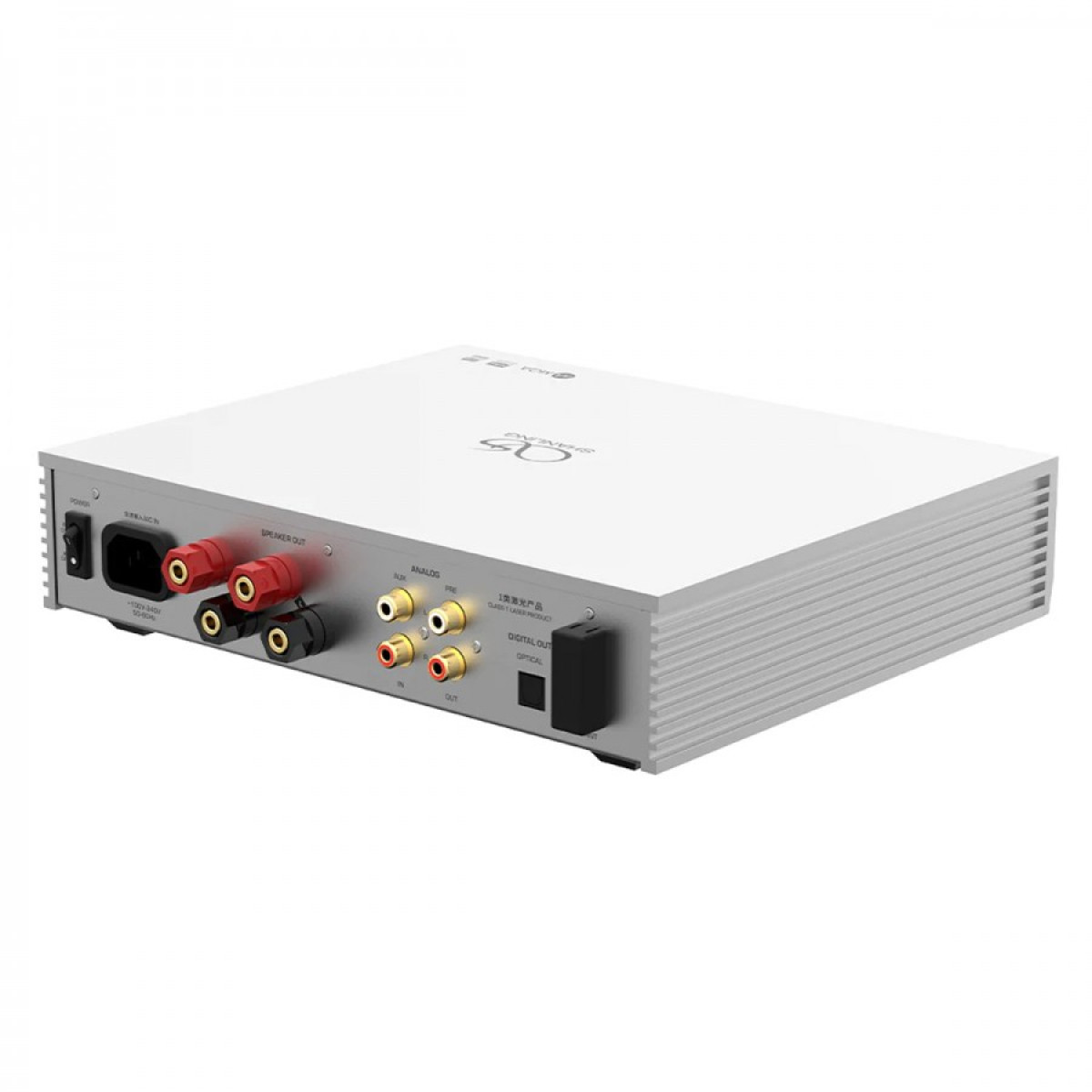

| 1 |
Power button |
| 2 |
Power input |
| 3 |
Speaker output |
| 4 |
AUX RCA input |
| 5 |
RCA pre-out |
| 6 |
Optical Toslink output |
| 7 |
Bluetooth antenna |
Technical characteristics
| Specifications |
| Product type |
CD Player
Amplifier
DAC |
| DAC chip |
ES9219MQ |
| Microprocessor |
X1000 |
| Control app |
Eddict Player |
| Amplifier power output |
100W @ 4 Ohm, 0.3% THD
50W @ 8 Ohm 0.3% THD |
| Frequency response (amp) |
20Hz-20kHz (-0.2dB) |
| THD+N (amp) |
0.003% |
| Channel separation (amp) |
80dB @ 32 Ohm |
| SNR (amp) |
108dB |
| Headphone output power |
130mW @ 32 Ohm |
| Frequency response (headphone output) |
20Hz-40kHz (-0.2dB) |
| THD+N (headphone output) |
0.0015% |
| Channel separation (headphone output) |
75dB @ 32 Ohm |
| Dynamic range (headphone output) |
119dB |
| SNR (headphone output) |
118dB |
| Output impedance (headphone output) |
< 1 Ohm |
| Output level (line out) |
2Vrms |
| Frequency response (line out) |
20Hz-40kHz (-0.2dB) |
| THD+N (line out) |
0.002% |
| Channel separation (line out) |
85dB |
| SNR (line out) |
116dB |
| Inputs |
CD
Bluetooth
1* USB-A |
| Outputs |
1* Optical Toslink
1* Jack 3.5mm
1* RCA |
| Supported Bluetooth codecs |
SBC, AAC, LDAC |
| Supported sampling rates |
PCM up to 32bit 384kHz
DSD up to DSD256
MQA |
| General |
| Supply voltage |
100-240VAC |
| Consumption |
20W |
| Dimensions |
250*205*52mm |
| Weight |
2.8kg |
| Color |
Black |
| Package |
1x Shanling CA80
1x Pewer cable
1x Remote control |
