Featuring 6 x 50 watts per channel.

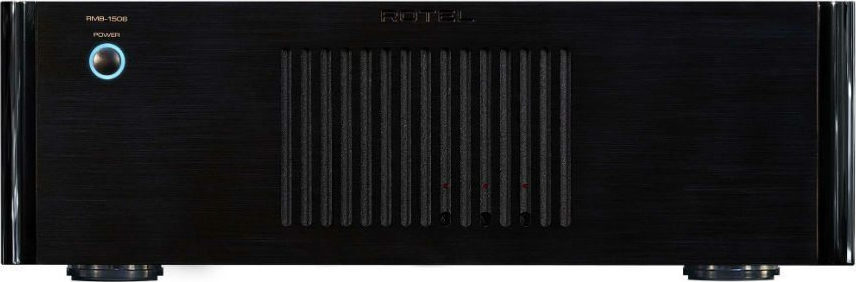

Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.
6 x 50 Watts of robust powerClass AB amplifier designOptional rack ears available
Automatic signal sensing 12 volt trigger input
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

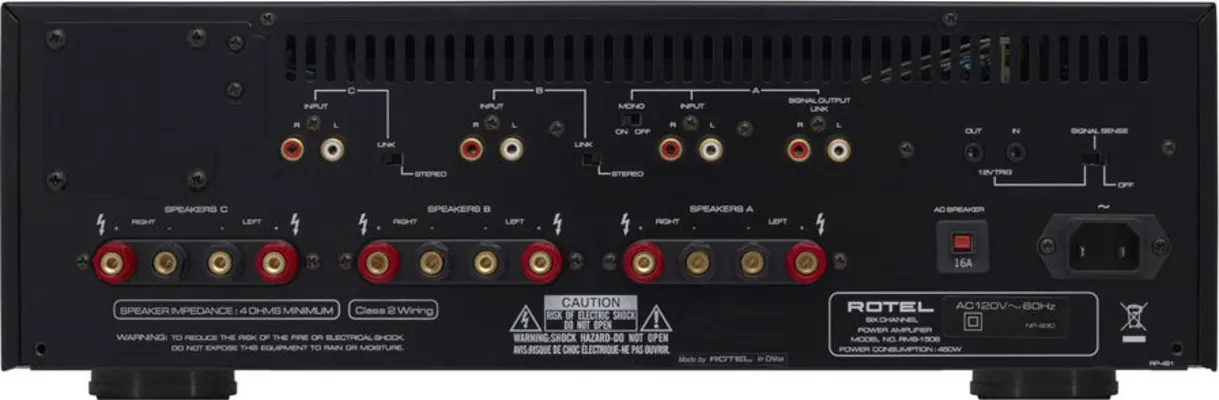

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
Engineered with care.
Dimensions (W × H × D) 431 × 144 × 424mm 17" × 5.7" × 16.7"
Front Panel Height 3U / 132.6mm (5.25")
Power Requirements 230V, 50Hz
Power Consumption 450W
Standby Power Consumption 2.6W
Net Weight 15.3kg (34lbs.)
BTU Rating (4Ω, 1/8th power) 1680 BTU/h
Continuous Power Output 50W/Ch (All channels driven, 8Ω) 80W/Ch (All channels driven, 4Ω)
Total Harmonic Distortion (THD) (20Hz–20kHz) <0.03%
Frequency Response 10Hz - 100kHz ±1dB
S/N Ratio (IHF "A" Weighted) 115dB
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Damping Factor >200
Speaker Impedance 4Ω minimum
Input Sensitivity 1V
