PERFORMANCE HOME THEATER
Serie HT is designed specifically to answer the challenge of creating affordably priced, exceptionally dynamic, pure home theater powered subwoofers. The HT/1205 is the ideal combination of a lightweight, modern 12” CarbonGlas™ (300mm) driver coupled to a powerful 500W Class D amplifier that runs cool, producing extraordinary dynamics. Internally, we developed specially adapted home theater input filters that produce extremely flat bass down in the 20’s.
We set out to build the loudest, relatively compact 12” unit available for pure home theater use, and at truly attractive pricing. You’ll be the judge of how well we accomplished that goal, but critics are already lining up for reviews. We believe the HT/1205 is destined to become a modern classic with svelte cabinet dimensions finished in an attractive, yet purposeful line grained black aluminum-look and topped by a 12mm thick beautifully polished top that serves to damp vibrations on the critical top surface of the cabinet.
For REL owners already enjoying our Reference, Serie S and T/i subwoofers designed for both 2-channel and theater use, the HT/1205 is designed to supplement their system’s .1/LFE output to produce extremely high output for chest rumbling home theater special effects.
Purpose Built
BRING ON THE SPECIAL EFFECTS

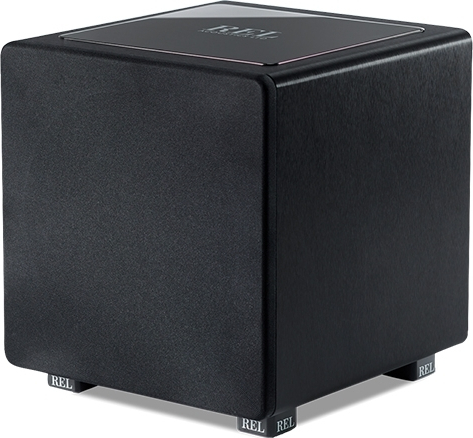

HT/1205 delivers a tough, simple, purpose-built appearance designed to communicate its sole mission; devastatingly high output home theater. The cabinet’s width is minimized reducing visual mass, whilst depth is maximized to produce the deepest bass. We selected tough, high-grade, horizontally oriented line-grained composite to wrap the entire cabinet, which offers easily handled, easy cleaning. This more basic design vocabulary differs from the more refined finishes found in our other lines, however the top surface that catches one’s eye is beautifully finished in 5 coats of hand rubbed lacquer, creating the visual appeal we’ve come to be known for.
Size Matters
TWELVE-INCH CARBONGLAS™ DRIVER

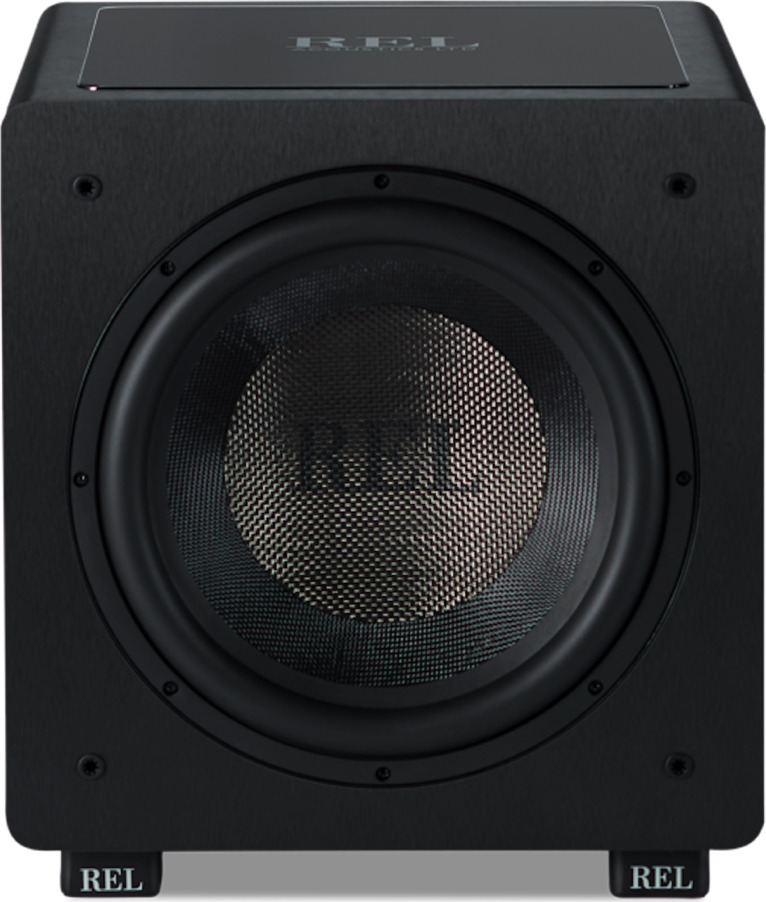

REL’s driver prowess is on full display with the HT/1205, a modern 12” CarbonGlas™ (300mm) driver that is both lightweight and extremely stiff. While many competitors drone along with relatively slow, heavy cones HT/1205’s uses tough, stiff carbon fibre over 60% of the driven surface, backed by lightweight glasfibre. Naturally, we use true high quality natural butyl surrounds as they remain soft and pliable for decades—something REL owners have come to expect. HT/1205’s new 12” CarbonGlas driver sets a new standard for affordable, high performance theater-specific drivers.
500W Amplifier
WARN THE NEIGHBOURS, IT'S MOVIE NIGHT
500 Watts: To accomplish our single-minded goal of exceedingly high output for large-scale theater applications requires a special amplifier. Our NextGen5 Class D amplifier frees up interior space whilst running cool; this results in more cabinet volume and that translates into louder and deeper bass. 500 watts means the driver never is allowed to starve for power ensuring a long running, reliable design. Within HT-1205’s input filter, we designed in specific inverse filtering to permit our CarbonGlas driver to extend much deeper than traditional designs.
HT-Air™
ZERO COMPRESSION WIRELESS COMPATIBLE
There is wireless and there is REL wireless. We are well-known for having the finest wireless purpose-built systems in the entire component audio world. Though HT-Air™ is affordable, it retains our corporate fixation on zero compression and maximum dynamics. HT-Air is designed to leave old fashioned Bluetooth-based systems in the dust, delivery latency in the 16-20 millisecond range. This permits owners to place your HT/1205 where it works best for you without resorting to unsightly cables being strewn across the landscape of your living room, all while retaining our category-leading super-fast wireless.
SPECIFICATIONS
TYPE
Closed box, front-firing driver
ACTIVE DRIVER SIZE & MATERIAL
12 in., 300mm long-throw, CarbonGlas™ cone structure, inverted carbon fibre dust cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
NA
LOW FREQUENCY EXTENTION
-6dB at 22 Hz
INPUT CONNECTORS
Dual purpose Low Level stereo RCA or LFE RCA
OUTPUT CONNECTORS
Daisy Chain Low Level stereo RCA or LFE RCA
POWER OUTPUT
500 watts (RMS)
AMPLIFIER TYPE
NextGen5 Class D
WIRELESS CAPABILITY
HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip
PROTECTION SYSTEM
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
8 Amp semi delay 230 or 115 volts operation
DIMENSIONS
W X H X D
15 x 16 x 15.7 in. (376 x 405 x 399 mm)
NET WEIGHT
38 lbs. (17.2 kg)
FINISH
Line Grained Black Composite
SUPPLIED ACCESSORIES
MAINS LEAD
Yes
NEUTRIK SPEAKON
NA
INTERCONNECT
No
USERS MANUAL
Yes
