Kenwood DMX-5020BTS 6.8" Mechless Digital Media

Kenwood

Κατόπιν Παραγγελίας

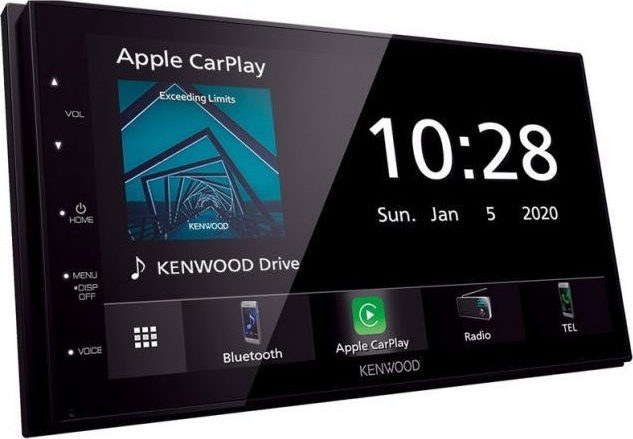

Kenwood DMX-5020BTS 6.8″ Mechless Digital Media

Name: Kenwood DMX-5020BTS 6.8" Mechless Digital Media
Brand: Kenwood
SKU: PS1677858101
Price: 299.00 EUR
Availability: Κατόπιν Παραγγελίας

6.8 Mechless Digital Media AV Receiver with Enhanced Wired Smartphone Connections & Bluetooth Connectivity.

Κωδικός:

PS1677858101

Τιμή299,00 €

Group Bottom

Περιγραφή

Kenwood DMX-5020BTS 6.8″ Mechless Digital Media

6.8 Mechless Digital Media AV Receiver with Enhanced Wired Smartphone Connections & Bluetooth Connectivity.

6.8″ WVGA Capacitive Touch screen – White Key Illumination
Apple CarPlay® & Android Auto™ Ready
Android USB Mirorring Ready
Built-in Bluetooth
Bluetooth wireless music browsing ready
2 Preouts + subwoofer (2.0V)
13 Band EQ – DSP – DTA Built-in
AV-in or Camera-in (Selectable) / AV-out
Rear Camera input with built-in parking guide lines
Short Chassis for easy installation

General Features

DIN Size	2 DIN
Smooth GUI	Yes
Selectable GUI Background Wallpaper	Yes
Key Illumination	White color
Back-up Memory	Yes
Attenuator with Smooth Volume Return	Yes
Touch Sensor Tone	Yes
Optional IR remote controller	Yes, (KNA-RCDV331)
Digital Clock (24H)	Yes
ISO connector	Yes
Bluetooth unit built-in	Yes
Made for iPod	Yes
Works with Apple CarPlay	Yes
Works with Android Auto	Yes
USB 1 wire Mirroring for Android	Yes
Firmware upgreadable	Yes

Monitor Features

Screen Type	6.8″ Wide VGA
Display Mode	4 Mode (Full/Zoom/Normal/Auto)
Screen Adjustments	Brightness / Tint / Color / Contrast
Dimmer function	Manual/Sync
Dimmer Level	yes
Visual Source Mode	Mirorring / CarPlay / Android Auto.
Display Type	Glare
Display film	Anti Fingerprint
Display Panel	Capacitive
Mechanism type	Fixed
NTSC/PAL judge	Yes (Auto)
Display Off Mode	Yes

Multimedia GUI Features

OSDC Type	Graphic
Menu text	14 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Hebrew ► Greek ► Polish ► Czech ► Hungarian
Software updates (SoC)
Demonstration Mode	Yes
Top Menu Customize	Yes
Opening Screen Type	standard
Background Customize	6 x presets + 2 x user set
R-CAM interrupt	Yes
R-CAM Parking Guide Lines	Yes

Tuner Features

Station Select	Manual / Preset (List)
FM Reception	Yes
AM (MW/LW) Reception	Yes
Tuner Presets (FM/AM)	20 Presets (15FM / 15AM)
Tuning mode	Auto1/Auto2/Manual
Up/Down Seek/Scan	Yes
Automatic Memory Entry (AME)	Yes
FM Stereo / Mono Selector	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes

Bluetooth General Features

Hands Free Profile (HPF)	V1.6
Hands Free Profile with High Sound Quality	HFP V1.6
Audio Streaming (A2DP)	Yes, (SBC/AAC)
Serial Port Profile (SPP)	Yes
Simple Secure Pairing (SSP)	Yes
Phonebook Access Profile (PBAP)	Yes
Generic Access Profile (GAP)	Yes
Service Discovery Profile (SDP)	Yes
Audio/Video Remote Control Profile (AVRCP)	Yes, V1.5
Catchphone / Call Waiting	Yes
Private mode	Yes
Alphabet Search (Phonebook)	Yes
Voice Control	Yes
Noise Canceller	Yes
Echo Canceller	Yes
Signal strength display	Yes
Remaining battery display	Yes
Bluetooth Paring Indicator	Yes
High-quality noise canceling microphone	included
Bluetooth firmware upgradeable	Yes, Included in system updates

CE_Playable Audio file

AAC (*.aac) files are playable	USB
MP3 files are playable	USB
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

CE_Playable Video file

MPEG1/2 files are playable	USB
MPEG4 files are playable	USB
WMV files are playable	USB
H.264 files are playable	USB
mkv files are playable	USB
JPEG files are playable	USB

USB Features

USB terminal	Yes, rear side / 1m cable / fix
USB Type	2.0 High speed
Works with Android Auto	Yes
Works with Apple CarPlay	Yes
USB Mirroring for Android	install “Mirroring OA for KENWOOD” from Playstore
Repeat Play	Folder/File/All
Random play	Folder
Category search	Yes
Link Search	Yes
Resume play	Yes
Time code display	Yes
1,5A Smartphone Quick Charge	Yes

Audio features

Max. Output Power (MOSFET Power IC)	4 x 45W
Pre-out	2 RCA : FRONT/REAR + SUB(mono)
Pre-out Output Level	2V
Volume Offset	Yes
Balance/Fader Control	Yes
Att.(-20dB) with smooth Volume Return	Yes
Digital Sound Processor (DSP)	Yes
Beep On/Off	Yes

Multimedia DSP Features

Car type control	► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van
Speaker Size & Location Control	Yes
X’over network	2-way X’over / HPF / LPF
Listening postion control / Time Alignment	Yes
Equalizer type	Graphical
Equalizer	13-Bands
Equalizer presets / User set	7 presets / 4 User set
Balance & Fader Control	Yes
Source Volulme Offset	source independent
Sound Effects	► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van
Audio Setup Memory	Yes

Video Features

Audio Video Output	Yes, Video only (RCA)
Audio/Video Input	Yes, AV-input or Camera input (Selectable)
Video-In for Rear-view Camera	1 dedicated video input (RCA)
Detection Mode Rear View Camera	Reverse sensor wire
Parking Guide Line	Yes

Connectivity

OEM Wired Remote Control ready	Yes, Optional interface needed
Programmable OEM Steeringwheel Remote Function	Yes
Parking sensor (handbrake) wire	Yes
Power Control (P.CON) wire	Yes
Dimmer control wire	Yes
Preout	2 x RCA (Front/rear) + Sub (mono)
AV-Input	1x mini-jack (selectable: AV-in / Camera-in)
Video Out	RCA x1
Reverse sensor wire	Yes
Rear View Camera Input	Dedicated RCA Video-in
FM Antenna Input	JASO connector
External microphone input	3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz – 108MHz (50Khz step)	Yes
FM Usable Sensitivity	1.8μV/75ohm (S/N 30dBf)
FM Frequency Response	30Hz ~ 14kHz (± 3dB)
FM Signal to noise ratio (Mono)	50dB
FM Stereo Separation (1kHz)	35dB
MW range: 531kHz – 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	99μV

Bluetooth specifications

Technology	Bluetooth V4.1
Frequency	2.402 – 2.48 GHz
Output power	+8dBm(max), power class 1
Maximum range	Line of sight approx. 10 meter
Handsfree profile (HFP)	Yes, V 1.6
Serial port profile (SPP)	Yes
Advanced audio distribution profile (A2DP)	Yes
Audio Codec	SBC/AAC
Phonebook access profile (PBAP)	Yes

USB Specifications

USB Version compatibility	USB 2.0 High Speed
File System	FAT 16/32, exFAT
Maximum Supply current	1500mA
D/A Converter	24bit
Video Decoder	MPEG1/2/4, WMV, H.264, mkv
Audio Decoder	MP3, WMA, AAC, WAV, FLAC

Audio Specifications

Maximum Power	45W x 4
Output Power (DIN45324,+B=14.4v)	21W x 4
Output frequency band	20Hz ~ 20kHz
Preout Level	2000mV / 10kOhm,
Preout Impedance	≤ 1400Ohm
Speaker Impedance	4Ohm ~ 8Ohm

DSP Specifications

Frequency band – Front	62.5Hz ~ 16kHz
Equalizer Gain	–9db ~ +9db
2-Way X’over / Front/Rear (HPF) / Frequency	trough/30/ … /220/250Hz
2-Way X’over / Front/Rear (HPF) / Slope	-6/-12/-18/-24 (dB/oct)
2-Way X’over / Subwoofer (LPF) / Frequency	30/40/ …250Hz/Through
2-Way X’over / Subwoofer (LPF) / Slope	-6/-12/-18/-24 (dB/oct)
Position: 2-Way (Front/Rear/Sub)Delay	0cm ~ 610cm (1cm step)
Subwoofer Level	-40dB ~ 6dB
Equalizer Type	Graphic
Frequency band	13 bands

Video Specifications

Color System of External Video Input	NTSC/PAL
External video input level (mini-jack)	1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA)	1.5 V / 25 kOhm

Monitor Specifications

Screen size (Diagonal)	6.75 Inches Wide
Screen Size (WxH)	151.8 x 79.7mm
Display system	Transparent TN LCD Panel
Drive system	TFT Active Matrix System
Number of Pixels	1152000pixels (800(H) x 480(V) x RGB)
Effective pixels	99.99%
Pixel arrangement	RGB Striped
Back lighting	LED (Light Emitting Diode)

General Specifications

Operating voltage	14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD)	178 x 100 x 75mm
Weight	1.1 gr.
Weight, inclu. sleeve & escutcheon	1.3 kg

Accessories

Release keys	2 pieces
Escutcheon	Yes
Installation Sleeve	Yes
Handsfree Microphone	with 3 m cable
