General Specifications

• Operating voltage : 9 – 16V
• RMS power @ 4 ohms – 2x60W
• RMS power @ 2 ohms – 2x70W
• RMS bridged power @ 4 ohms – 1x140W
• Total peak power 560W
• Frequency response 20Hz – 20kHz @ -1dB
• THD + N at rated power
• (20Hz – 20kHz) <1%
• Line-in signal-to-noise ratio
• (reference to 1 watt) >75dB
• Maximum high input signal level 12V
• High input maximum sensitivity 0.5V
• Maximum line input signal level 5V
• Line input maximum sensitivity 0.2V
• Quiescent current draw <1.5A

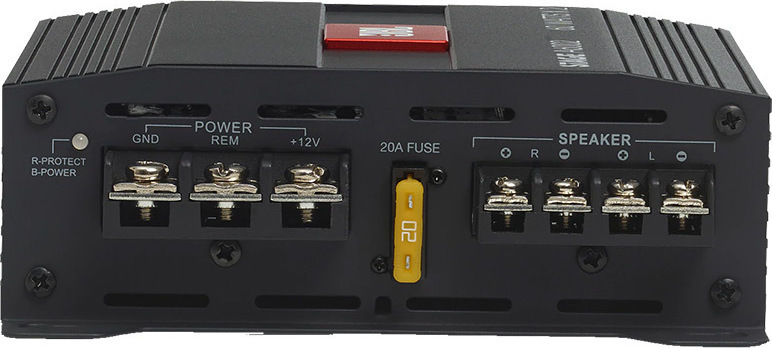

• Fuse size 20A
• Dimensions (H x W x L) 50 x 145 x 156.6mm
