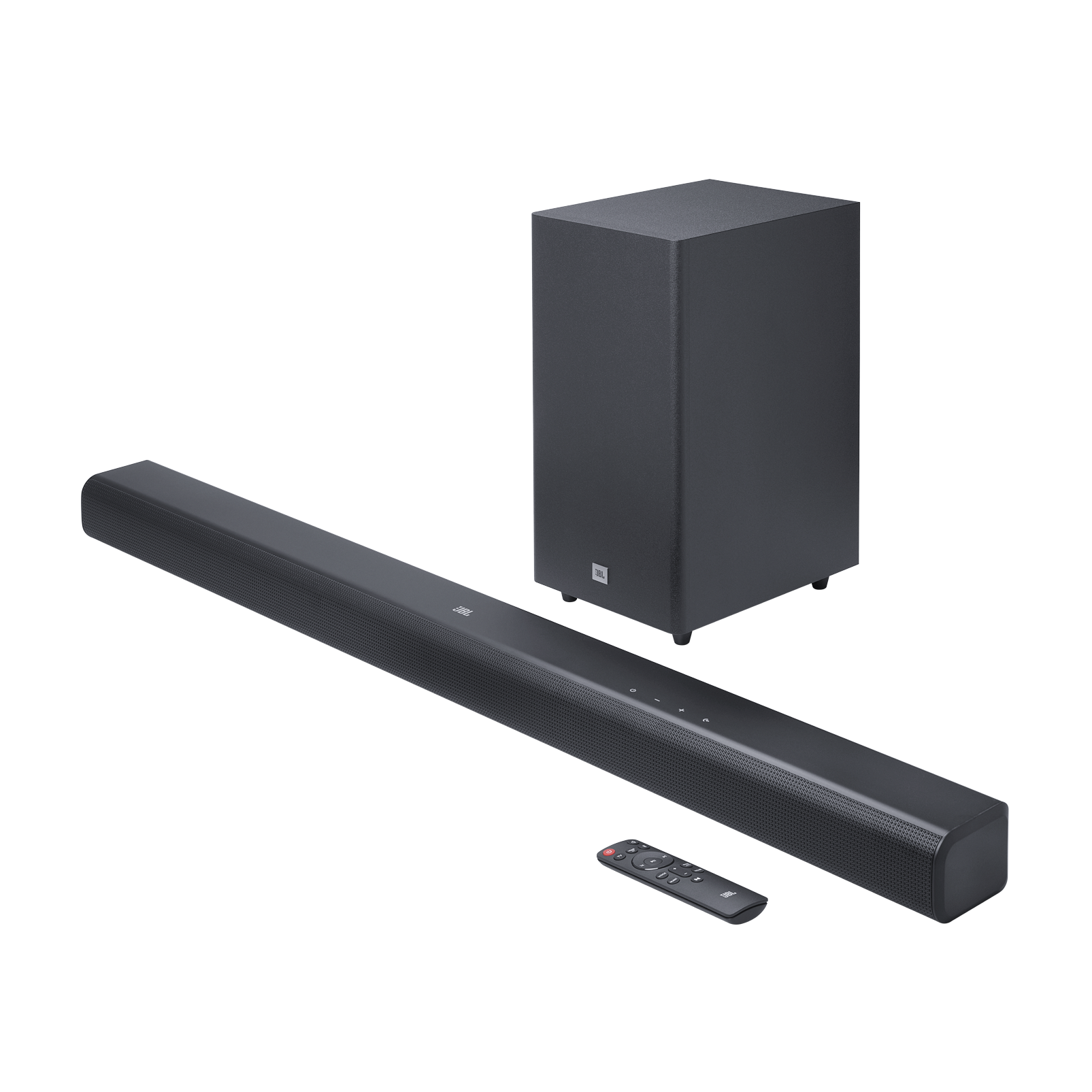

440W of powerful JBL sound
Clear, powerful sound for the ultimate immersive home theater experience.

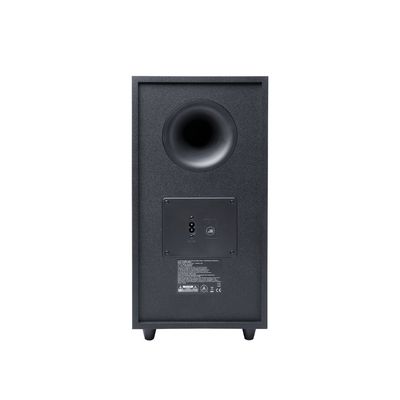

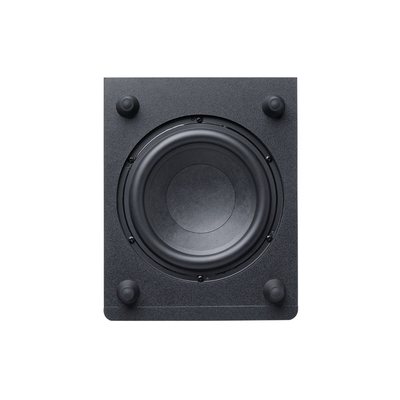

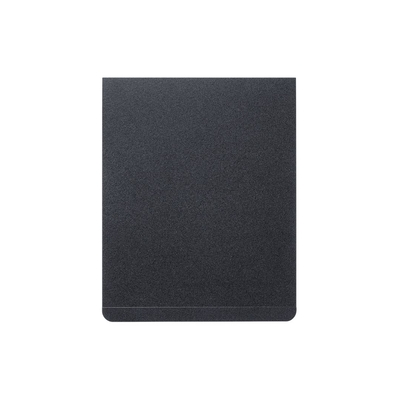

Wireless subwoofer for extra deep bass
Experience deep, thrilling bass from a 6.5" subwoofer without the clutter of extra cables.
General Specifications

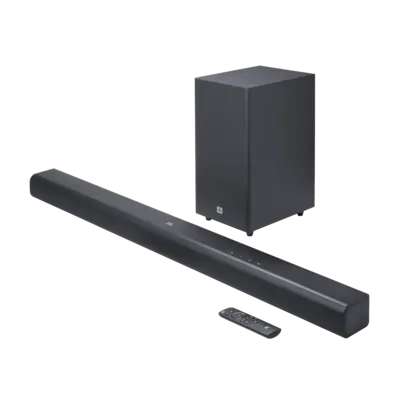

Model CINEMA SB580
Sound system 3.1 channel
Power supply 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%) 440W
Soundbar output power (Max @THD 1%) 240W
Subwoofer output power (Max. @THD 1%) 200W

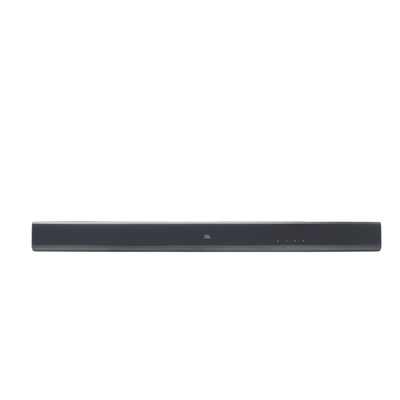

Soundbar transducer 3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters
Subwoofer transducer 6.5” (165 mm), wireless subwoofer
Standby power < 0.5 W
Operating temperature 0°C - 45 °C
Audio Specifications
Frequency response 40Hz-20kHz (-10dB)
Audio inputs 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D) 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
Subwoofer dimensions (W x H x D) 200 x 404 x 250 mm / 7.9" x 15.9" x 9.9"
Soundbar weight 2.6kg / 5.7 lbs
Subwoofer weight 5.7 kg / 12.6 lbs
Packaging dimensions (W x H x D) 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
Packaging Weight 10.4 kg / 22.9lbs
Control and Connection Specifications
USB port Type A
USB rating 5V DC, 0.5A
Supporting file formats mp3
MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16 - 48 kHz
Bluetooth version 5.3
Bluetooth profile A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range 2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power <10 dBm (EIRP)
Bluetooth modulation GFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range 2402-2481 MHz
2.4G wireless transmitter power ＜10dBm (EIRP）
2.4G wireless modulation GFSK
Video Specifications
HDMI video input 1
HDMI video output (with Enhanced Audio Return Channel, eARC) 1
HDMI HDCP version 2.3

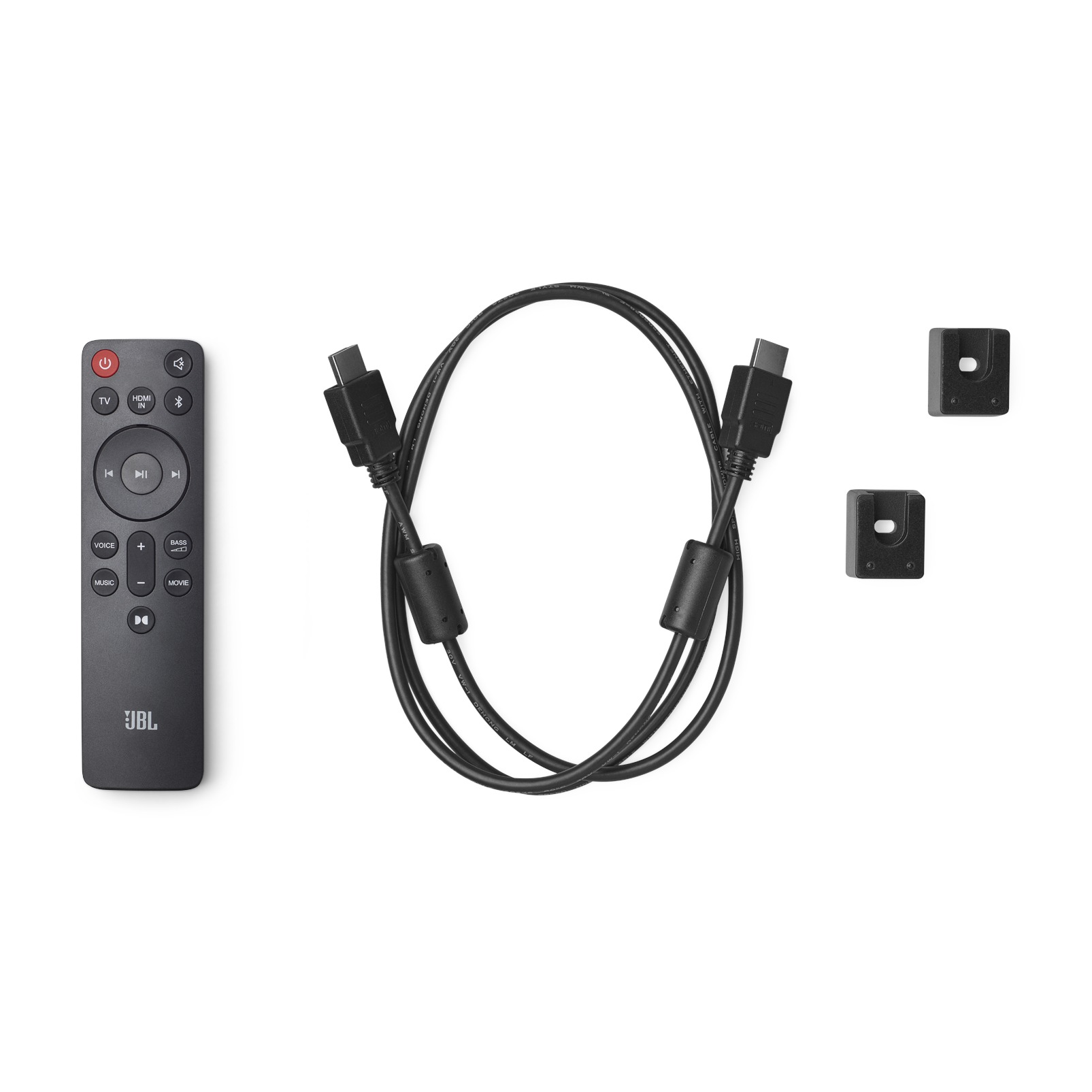

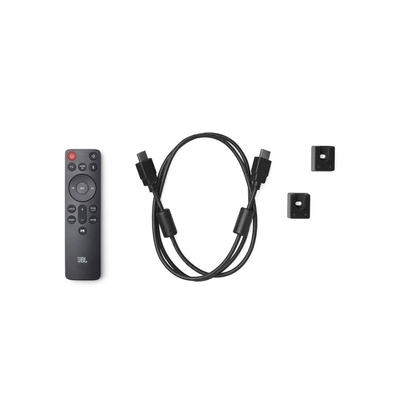

What's in The Box?

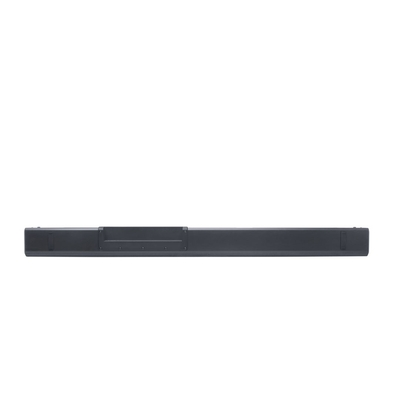

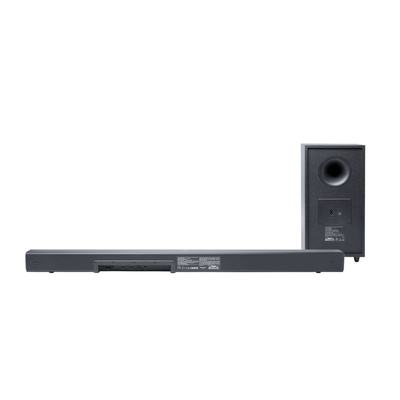

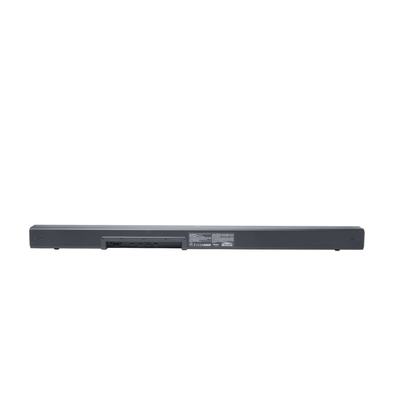

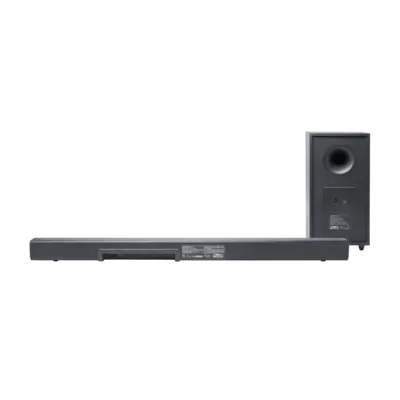

Soundbar

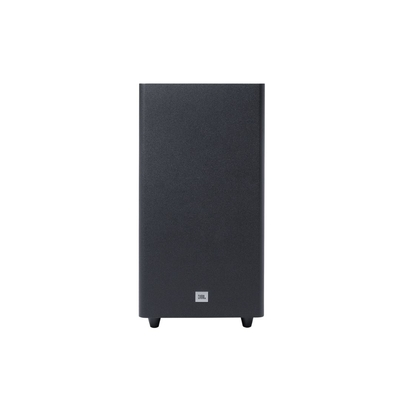

Wireless subwoofer

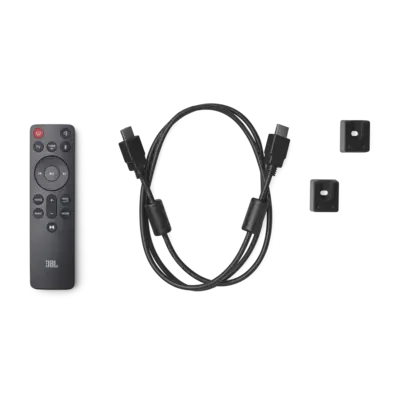

Remote control with batteries
Power cords (up to 8pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
