AC Current Capacity:

Input - 16 Amp capacity required

Output - 8 - 16 Amps RMS * (maximum, all outlets combined - continous)



Linear Noise Attenuation:

Tranverse (Differential) Mode:

> 40 dB from 10 kHz - 100 kHz, > 80 dB from 100 kHz - 1GHz

(Linear attenuation curve from 0.05 - 100 ohms line impedance)

Common Mode (video outlets):

> 75 dB, 10 Hz - 50 kHz, > 40 dB 50 kHz - 1 MHz

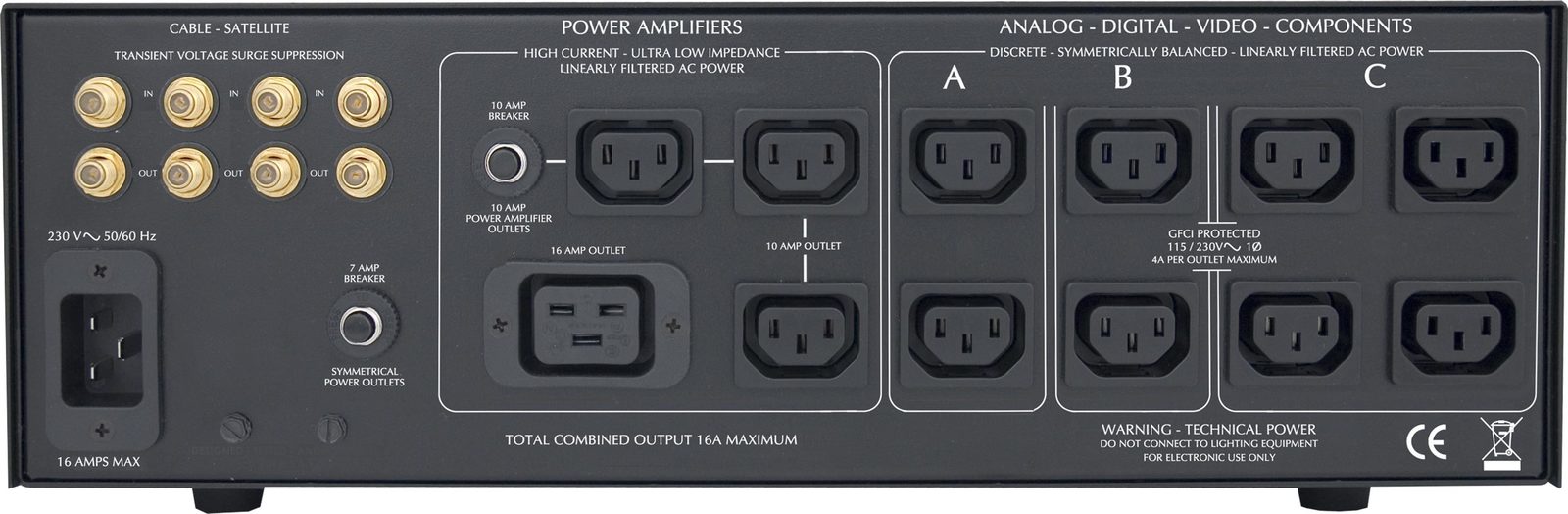

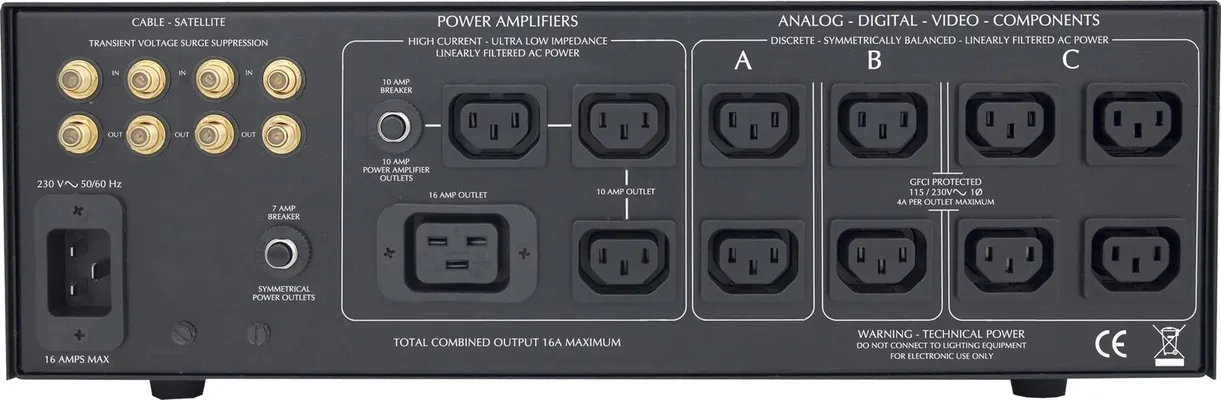

Outlets:

8 (symmetrical balanced outlets)

4 (Power Factor Technology outlets - 9 amps RMS reserve - reactive load - over 80 amps pk. charge, 3x 10A, 1x 16A)



Transient Voltage Surge Suppression:

230 VAC - Series Multi-Stage Protection - Non-Sacrificial with Zero Ground Contamination.

(376 V peak clamping & 6000V / 3000A input)

Extreme Voltage Shutdown (275VAC ±5VAC VAC)

Telco Cable / Satellite (less than .1dB insertion loss)



Dimensions: 152mm H x 432mm W x 413mm D

(Standard 3 rack unit height without feet)



Weight: 40 kg.



Power Consumption: 8.5 Watts for display and control circuits independant of actual load



Safety Agency Listing: C-ETL
