AC Current Capactiy:

Input - 16 Amp capacity required

Output - 13-16 Amps RMS (maximum, all outlets combined - continuous)



Linear Noise Attenuation:

Transverse (Differential) Mode:

> 40 dB from 5Khz. - 100 kHz.

>80 dB from - 100 kHz. – 1GHz.

Common Mode:

>40dB from 10Hz. – 30 kHz.

>20 from 40 kHz. – 1MHz.

(Linear attenuation curve from 0.05 – 100 ohms line impedance)

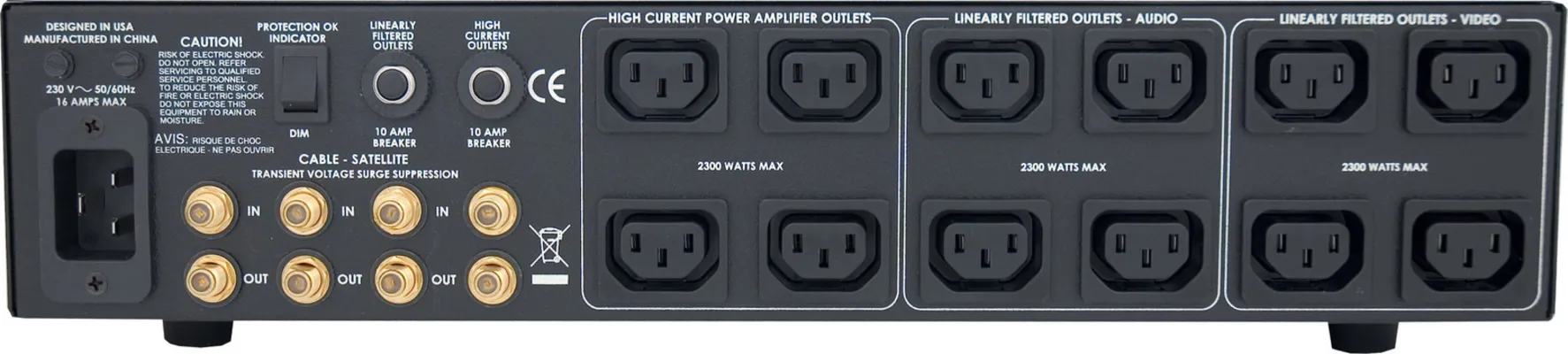

Outlets: 4 (ultra-linear filtered outlets)

4 (ultra-linear filtered outlets with additional bi-directional ultrasonic filtering for each analog or video components bank)

4 (Power Factor Technology amplifier outlets – 9 amps RMS reserve - resistive load - 55 amps peak charge)



Transient Voltage Surge Suppression: 230 VAC (Series Multi-Stage Protection, non-sacrificial with Zero Ground Contamination, 266V peak clamping @ 6000V 3000A input)

Cable / Satellite (less than .1dB insertion loss)



Dimensions: 101.6mm H x 431.79mm W x 374.65mm D (Standard 2 RU height without feet)



Weight: 8.16 kg.



Power Consumption: 12 Watts for display and control circuits independent of actual load.
