Current rating:
Input - 10 amp capacity required
Output - 10 amps RMS (maximum, all outlets combined - continuous)
Linear Noise Attenuation: Tranverse (Differential) Mode:
> 40 dB from 10kHz. - 100kHz
> 80 dB from 2 kHz 0 100 kHz. – 1 GHz.
(Linear attentuation curve from 0.05 – 100 ohms line impedance)

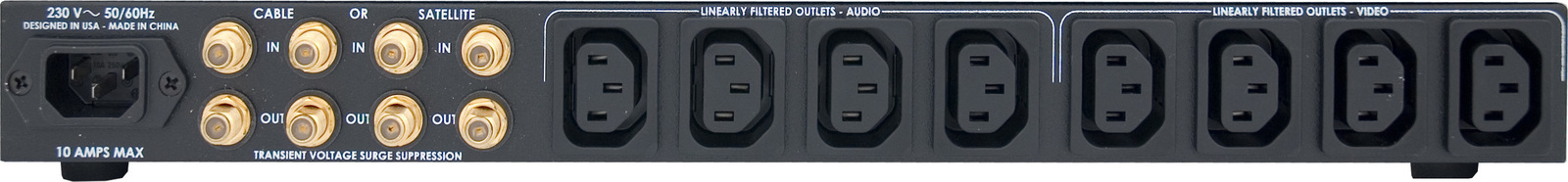

Outlets:
4 (linearly filtered outlet)
4 (linearly filtered outlets with additional ultrasonic filtering for digital or video components)
Transient Voltage Surge Suppression:
230VAC Line (Series Multi-Stage Protection, non-sacrifictial with Zero Ground Contamination, 266V peak clamping @ 6000V 3000A input)
Cable / Satellite (less than .1dB insertion loss)
Dimensions: 54.6mm H x 431.79mm W x 374.65mm D (Standard 1 RU height without feet)
Weight: 5 kg.
Power Consumption: 6 Watts for display and control circuits independent of actual load
