Multichannel Surround:
DTS HD Master, DTS:X, DTS:X Pro: Yes, -, –
DTS Neo:X, DTS Neural:X: -, –
DTS Virtual:X: –
IMAX Enhanced: –
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, -, -, –
Dolby ProLogic Ilz, Dolby Surround: -, –
Auro 3D: –
360 Reality Audio/MPEG H: –
Multichannel Stereo: Yes
Max Number of Processing (Preamp) Channels: 5.1
Sound Enhancements:
Mono Block Power Amp Construction: –
Discrete Power Amplifier: Yes
D.D.S.C. HD Digital: –
Pure Direct: Yes
Gold Plated RCA Terminals: –
Clock Jitter Reducer: –
Alpha Processing: –
Audyssey: –
Audyssey Dynamic EQ, Dynamic Volume: -, –
Audyssey LFC: –
Dirac Live Upgradability: –
Compressed Audio Restorer: Yes
Network:
Media Server: –
HEOS Wireless Multi-Room Technology: –
Alexa/Google Voice Assistant/Apple HomePod: -, -, –
Lossy Formats: MP3, WMA, AAC: -, -, –
Lossless Formats: FLAC, ALAC, WAV: -, -, –
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): -, -, –
DSD Audio Streaming: –
AirPlay 2: –
TuneIn: –
Spotify Connect: –
Pandora: –
SiriusXM: –
Roon Tested: –
HEOS App Control: –
Compatible with Remote APP for Smart Phones: Denon 500 Series Remote
Ethernet Ports: –
Wi-Fi: –
Bluetooth: Yes
HDMI:
HDMI Inputs: Back, Front:4, –
HDCP2.3 support: Yes
HDMI Outputs: Main, Zone: 1 / –
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming: –
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: Yes, Yes, –
3D Signal Pass-through: Yes
8K Signal Pass-Through, Scaling, GUI Overlay: Yes
DSD Audio Capability: –
Audio Return Channel (ARC), Enhanced ARC: Yes
Auto LipSync: –

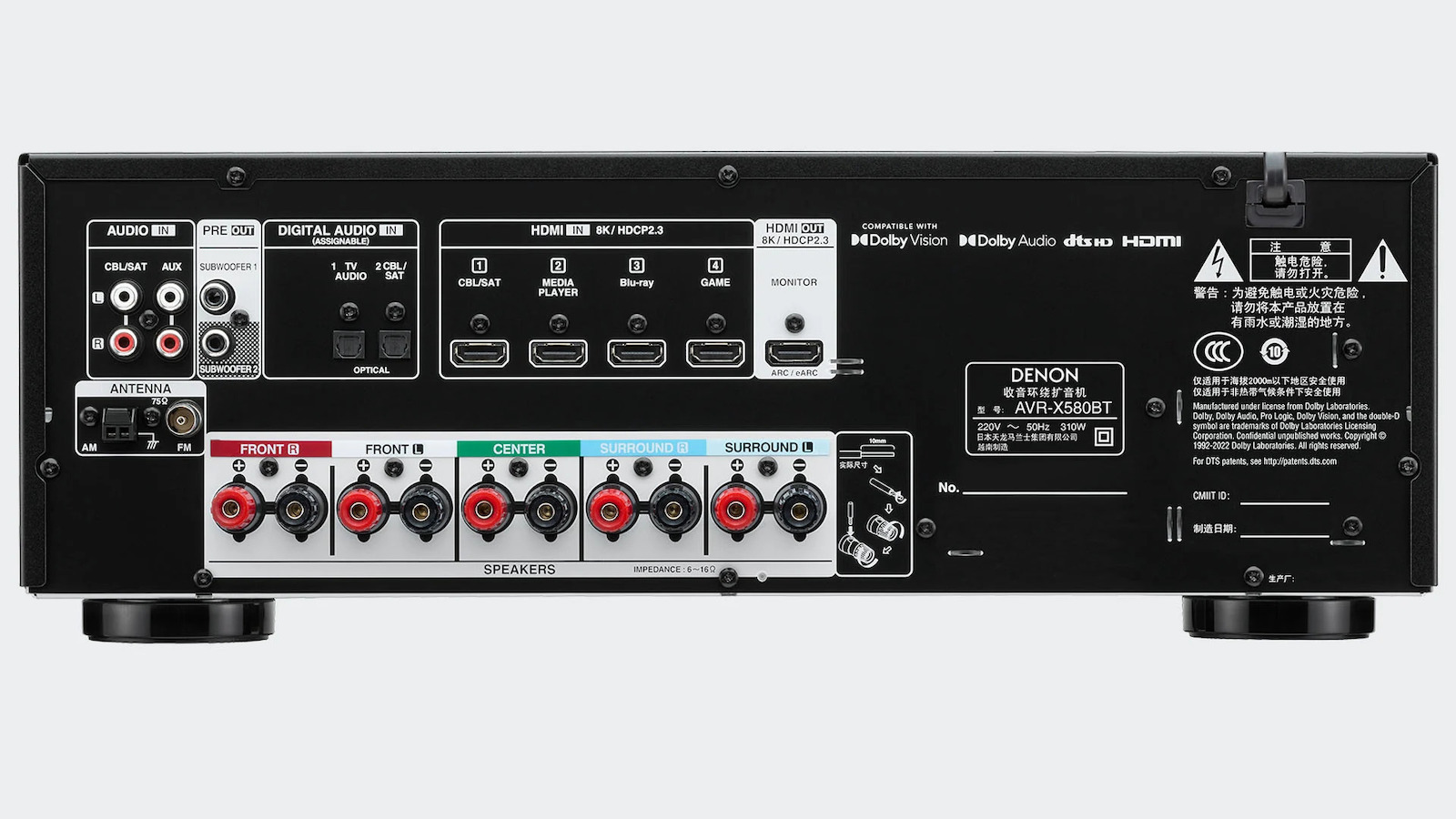

Inputs/Outputs:
HDMI In / Out: 4, 1
Multi-room Video Out: Video / HDMI: -, –
Analog In, Out: 2, –
Phono (MM) In: –
Digital In: Optical / Coaxial: 2, 1
Multi-room Out: Analog / Digital: -, –
Multichannel Preout: Yes (0.2)
Subwoofer Out: 2
Speaker Terminal: Gold Plated Screw / Regular Screw: -, –
Number of Speaker Terminals: 5
Speaker A / B: –
Bi-amp Drive: –
Multi-Room Speaker Terminal: –
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: -, -, -, -, Yes
USB Audio / Made for iPod / Made for iPhone: Yes, -, –
AM/FM Tuner: Yes
Specifications:
Number of Poweramps: 5
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive): 70W
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive): –
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 90W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 140W
General:
Metal Front Panel: –

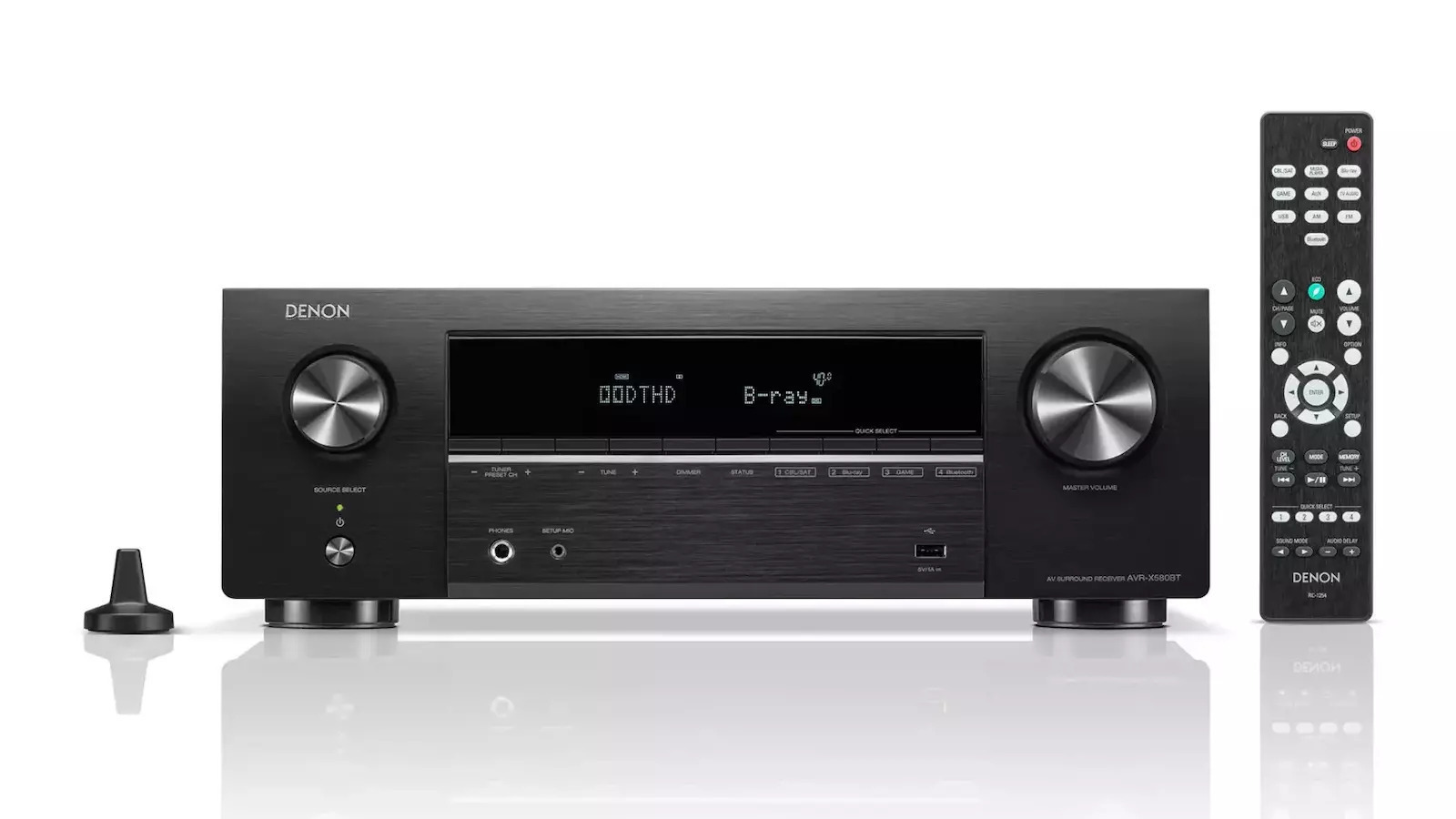

System Remote Control: RC-1254
Pre-programmed / Learnable / LCD Display: -, -, –
Power Consumption in W: 310
Power Consumption No-Sound (ECO On / Off) in W: 26W/35W
Standby Consumption in W: 0.1
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: –
Dimensions (W x H x D)
17.1 × 6 × 13 inches
434 x 152 x 330 mm
Weight:
7.6 kg / 16.8 lbs
