Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / No

DTS Neo:6 / DTS Neural:X: No / Yes

DTS Virtual:X: Yes

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes

Dolby ProLogic Il / Dolby Surround: No / Yes

Multichannel Stereo: Yes

Dialog Enhancer: Yes

Max. number of processing (preamp) channels: 7.1

Sound Enhancements

Discrete Power Amplifier: 7

Audyssey: MultEQ

Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes

Compressed Audio Restorer: Yes

Network

Media Server: Yes

HEOS Wireless Multi-Room Technology: Yes

Bluetooth Re-Transmit for Bluetooth Headphones: Yes (with volume control)

Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes

Lossy Formats: MP3 / WMA / AAC: Yes / Yes / Yes

Lossless Formats: FLAC / ALAC / WAV: Yes / Yes / Yes

Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes

DSD Audio Streaming: Yes (2.8/5.6MHz)

FLAC HD 192/24: Yes

WAV 192/24: Yes

ALAC 192/24: Yes

Gapless playback: Yes (FLAC, WAV, ALAC ,DSD)

AirPlay Audio Streaming: Yes (AirPlay2)

Internet Radio: Yes (TuneIn)

Spotify: Yes (connect)

Pandora: Yes

SiriusXM: Yes

Other Streaming Services: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix

Roon Tested: Yes

HEOS App Control: Yes

Compatible with Remote APP for Smart Phones: Denon AVR Remote

Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle

Ethernet Ports: Yes

Wi-Fi: Yes

Bluetooth: Yes

HDMI

HDMI Inputs: Back/Front: 6 (3x 8K) / Yes

HDMI Outputs: Main/Zone: 1 / No

HDMI max Resolution (8k / 4k): 8k/60 – 4k/120

HDMI to HDMI Scaling: up to 8K 60/50

HDMI: 8K / 4K / CEC / eARC: Yes / Yes / Yes / Yes

HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG: Yes / Yes / Yes / Yes

HDMI: ALLM / QMS / QFT / VRR: Yes / No / Yes / Yes

HDMI Pass-Though in Standby Mode: Yes

Multiroom / CI

HEOS Multiroom integrated: Yes

TV Sound grouping: Yes

Multiroom zones: 2

Main room multichannel audio – Zone stereo downmix: Yes

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes

Zone Audio Output: Speaker / Pre-Out: Yes / No

Webbrowser Setup: Yes

IP Control / RS232 Control / Web Control / App Control: Yes / No / Yes / Yes

Others

Voice Control – Works with Amazon Alexa: Yes

Voice Control – Google Assistant / Apple Siri: Yes

Auto speaker setup by microphone: Audyssey MultEQ

Front Display: 1 line FLD

Graphic User Interface – GUI: High Definition 1080p

GUI languages: 9

Setup Assistant: Yes

Quick Select Plus / Quick Select: Yes / No

Firmware Update by Network / USB: Yes / Yes

Variable Crossover: Yes

Optimized Bass Redirection: Yes

HDMI Diagnostic Mode: Yes

ECO Mode: Yes

Auto Power off: Yes

Sleep Timer: Yes

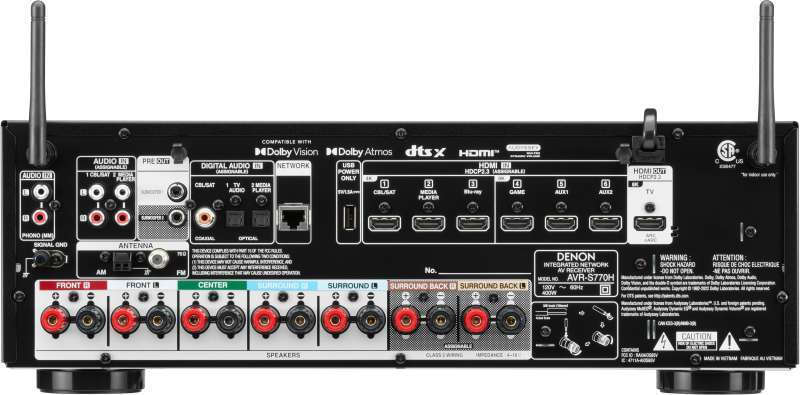

Inputs/Outputs

HDMI In/Out: 6 / 1

Analog In/Out: 2 / No

Phono (MM) In: Yes

Digital in: Optical/Coaxial: 2 / No

Multichannel Pre-Out: Yes (0.2)

Subwoofer Out: 2

Speaker Terminal: Gold-Plated Screw / Regular Screw: No / Yes

Number of Speaker Terminals: 7

Multi-Room Speaker Terminal: assignable

USB Audio Input Front: Yes

USB Power 5V/1.5A Rear: Yes

FM Tuner with RDS: Yes

Specifications

Number of Power Amps: 7

Power Output (8 ohm, 20 Hz–20 kHz, 0.08% 2ch Drive): 75 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 110 W

Power Output (6 ohm, 1 kHz, 1% 1ch Drive): 140 W

General

Available colors: Black / Premium Silver: Yes / No

System Remote Control: RC-1257

Power Consumption in W: 400

Power Consumption No-Sound (ECO on / off) in W: 29 W / 39 W

Standby Consumption in W: 0.1

CEC Standby Consumption in W: 0.5

Network Standby Consumption in W: Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in mm: 434× 339 × 151

( Antenna:Vertical :(W x D x H) in mm): ( 434 x 339 x 215)

Carton Maximum Dimensions (W x D x H) in mm: 523 x 435 x 232

Weight in kg: 8.6

Carton Weight (inc. product) in kg: 10.6
