• Number of Power Amps: 13
• Power Output:

150 watts per channel

(8 ohm, 20Hz – 20kHz,0.05% 2ch Drive)

190 watts per channel

(6 ohm, 1kHz, 0.7% 2ch Drive)

190 watts per channel

(6 ohm, 1kHz, 1% 1ch Drive)

210 watts per channel

(6 ohm, 1kHz,10% 1ch Drive)

• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
• Front Display: 2 Lines FLD
• GUI Languages: 9

General

• System Remote Control: RC-1261
• Power Consumption in W: 900W
• Power Consumption No-Sound (ECO on/off) in W: 70W/125W
• Standby Consumption in W: 0.1W
• CEC Standby Consumption in W: 0.5W
• Network Standby Consumption in W: Less than 2.0W
• Maximum Dimensions

  Antenna, Horizontal:

  (W × D × H) in mm: 434 × 482 × 195
• Maximum Dimensions

  Antenna, Vertical:

  (W × D × H) in mm: 434 × 482 × 259
• Maximum Dimensions

  Antenna, w/o Antenna:

  (W × D × H) in mm: 434 × 472 × 195
• Weight in kg: 23.6 kg

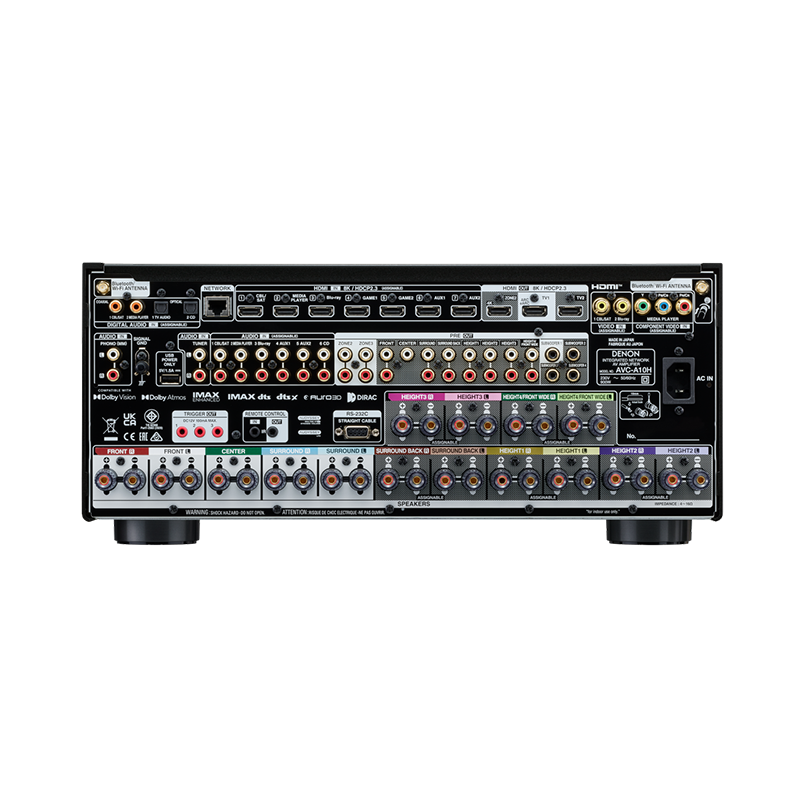

• HDMI In/Out: 7/3
• Analog In/Out: 7+1 / 0
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / 0
• Multichannel Pre-Out: Yes (15.4)
• Subwoofer Out: 4 (independent)

• Number of Speaker Terminals: 15
• Speaker A/B: Assignable
• Bi-Amp Drive: Assignable
• Multi-Room Speaker Terminal: Assignable
