| Φυσική ανάλυση |
4K UHD (3840 x 2160) |
| Φωτεινότητα* |
3000 ANSI Lumens |
| Λόγος αντίθεσης |
10000:1 |
| Projection System |
DLP |
| Χρώμα προβολής |
30 Bits (1,07 billion colors) |
| Aspect Ratio |
Native 16:9 (6 aspect ratio selectable) |
| Λόγος απόστασης |
1.47 - 1.76 (100" @ 3.25 m) |
| Λόγος ζουμ |
1.2X |
| Αντιστάθμιση προβολής |
110%±2.5% |
| Υποστήριξη ανάλυσης |
VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Οριζόντια συχνότητα |
15K-102KHz |
| Συχνότητα κάθετης σάρωσης |
23-120Hz |

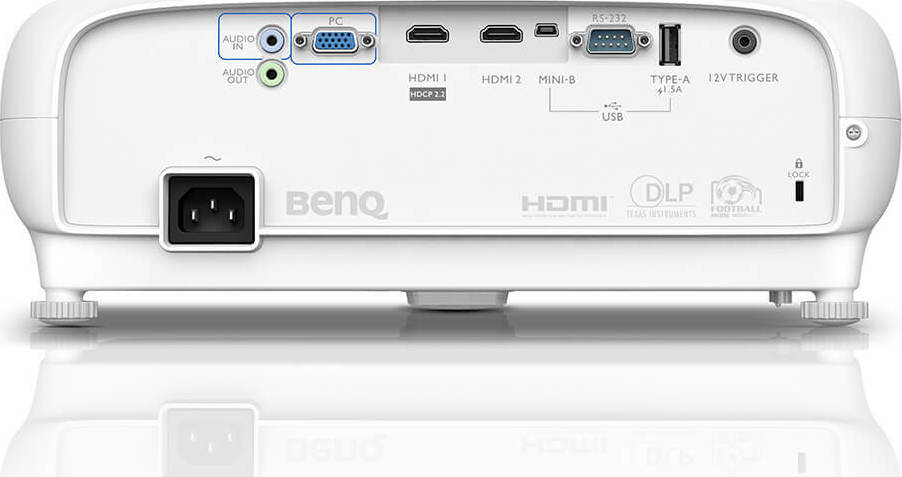

| Διεπαφή |
HDMI-1 (HDMI 2.0 & HDCP 2.2) x1
HDMI-2 (HDMI 1.4a & HDCP 1.4) x1
Computer In-1 (D-sub 15pin, Female) x1
USB Type A (1.5A power) x1
USB Type mini B (Service) x1
Audio In (mini jack) x1
Audio Out (mini jack) x1
RS232 In (D-sub 9pin, male) x1
DC 12V Trigger (3.5mm Jack) x1
IR Receiver (Front+Top) x1 |
| Διαστάσεις (Π x Υ x Β) |
353mm x 135mm x 272mm |
| Συμβατότητα HDTV |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| On-Screen Display Languages |
28L |
| Εξαρτήματα (περιλαμβάνονται) |
Remote Control w/ Battery x 1
Power Cord (by region) x 1(3m)
User Manual CD
Quick Start Guide
Warranty Card (by region)
Lens cover x 1 |
| Security |
Security Bar |
| Keystone Adjustment |
1D, Vertical ± 40 degrees |
| DMD Chip |
0.47" |
| Κατανάλωση ρεύματος |
385W/330W/250W |
| Light Source |
240W Lamp |
| Light Source Life |
Normal 4000 hours
Economic 10000 hours
SmartEco 8000 hours |
| Environmental Notice |
*Lamp in this product contains mercury.To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
**Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
***Offset is calculated by full-screen height.
****Resolution is 1920x1080 in 3D Mode. |
| Accessories (Optional) |
Spare Lamp Kit
3D Glasses |
| Projection Size |
60" ~ 200" / 300" |
| Noise Level |
33dBA / 29dBA |
| Built-in Speaker |
5W x 1 |
| Operating Temperature |
0~40 degrees (Celcius) |
| Power Supply |
VAC 100 ~ 240 (50/60Hz) |
| Χαρακτηριστικό |
4K UHD, HDR10, Football Mode, AutoKeystone, Short Throw Lens (100" @3.25m) |
| Standby Power Consumption |
0.5W Max. at 100 ~ 240VAC |
| Weight |
4.2kg |
