10 mono channelsNeutrik mic XLRNeutrik 1/4 inch jacksChannel insertSuper wide gain 'DuoPre' mic line input3 band EQ with MusiQ4 auxesIlluminated muteSound image panIlluminated PFL & peak warning indicatorALPS 100mm faders4 stereo channels with 2-band EQStereo returns & playbackAll inputs with level control12 bar metersMono/stereo function on auxes 1&2Monitor output sectionAlt stereo output sourceConfigurable USB stereo audio in/outGlobal +48V phantom powerCakewalk SONAR LE bundled with mixerRack ears availableSB audio flexibilityGetting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:
Send options:1) Main Mix Left + Right (Post-fade)2) Main Mix Left + Right (Pre-Fade)3) Auxes 1-24) Auxes 3-4
Return options:1) To Stereo 3 channel

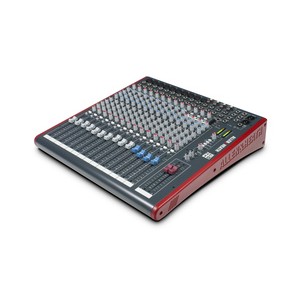

ZED-18 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
Based on the proven pre-amps from the hugely successful PA series, ZED-18 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.
SONAR X1 LE – Provided Free!
We've included Cakewalk SONAR X1 LE with ZED-18 so you can immediately start to use it to create your own music – just add a PC and it couldn't be easier to get going. You'll be able to record from your ZED mixer, create tracks and arrange songs, then play back to ZED via the USB port. You can use SONAR X1 LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
Powered by SONAR X132 audio tracks64 MIDI tracks8 simultaneous inputs and outputs24-bit/96 kHz audio quality24 simultaneous effects8 simultaneous virtual instruments
