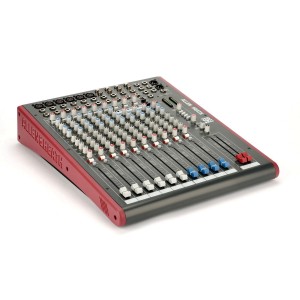

Η Zed 14 της Allen Heath είναι κονσόλα 14 εισόδων, 6 mic/line inputs, 4 dual stereo inputs, 4 aux sends.
Διαθέτει θύρα USB digital audio interface για σύνδεση με ηλεκτρονικό υπολογιστή, channel mutes, hi-pass φίλτρο, 2-track return και έξοδο ακουστικών 1/4" και 3.5mm .
Διατίθεται με το πρόγραμμα Cakewalk Sonar Χ1 LE. Η κονσόλα αυτή είναι κατάλληλη για home recording, live, internet radio (web radio) κ.α.
6 mono channels Neutrik mic XLR Neutrik 1/4 inch jacks Channel insert Super wide gain ‘DuoPre’ mic line input 3 band EQ with MusiQ 4 auxes Illuminated mute Sound image pan Illuminated PFL & peak warning indicator ALPS 100mm faders 4 stereo channels with 2-band EQ and inputs for extra sources Stereo returns & playback All inputs with level control 12 bar meters Mono/stereo function on auxes 1&2 Monitor output section Alt stereo output source Configurable USB stereo audio in/out Cakewalk SONAR X1 LE bundled with mixer Rack ears available USB audio flexibilityGetting audio to and from a computer easily is now a common requirement for live sound and music production.
The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy.
Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:- Send options: 1) Main Mix Left + Right (Post-fade)2) Main Mix Left + Right (Pre-Fade)3) Auxes 1-24) Auxes 3-4 Return options:1) To Stereo 3 channel MusiQZED-14 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments. DuoPre™Based on the proven pre-amps from the hugely successful PA series, ZED-14 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage.
When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to ahigher input impedance.
SONAR X1 LE – Provided Free! We’ve included Cakewalk SONAR X1 LE with ZED-14 so you can immediately start to use it to create your own music – just add a PC and it couldn’t be easier to get going. You’ll be able to record from your ZED mixer, create tracks and arrange songs, then play back to ZED via the USB port. You can use SONAR X1 LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
Key Features Powered by SONAR X1 32 audio tracks 64 MIDI tracks 8 simultaneous inputs and outputs 24-bit/96 kHz audio quality 24 simultaneous effects 8 simultaneous virtual instruments
