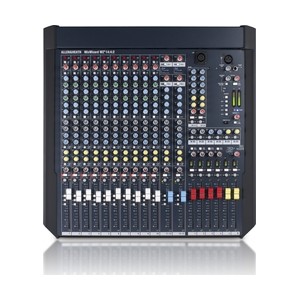

19" Rack mountable
10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
100mm faders
Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
6 Aux sends - switchable pre/post fade
4 Audio groups
2 Dual Stereo inputs with separate gain and 'ON' switches allowing inputs to be selected independently or mixed together
4 band EQ with 2 swept mids
6x2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
Oscillator and Pink Noise generator for line-up and speaker testing
Tri-colour, 12 segment bargraph metering
+48V Phantom Power
Signal and Peak LEDs
Talkback Mic XLR with trim
Lamp socket
USB multitrack recording option
Διαστάσεις (HxWxD): 193x483x497mm
Βάρος: 13kg
