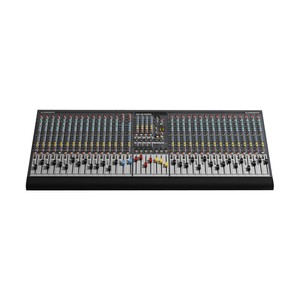

32 channel frames
LR and M main outputs
4 Audio groups with pan control
6 Auxiliary sends with per-channel pre/post fader switching
2 stereo channels, each with mic and dual stereo line inputs
7x4 Matrix
Proper dual functionality for FoH and/or Monitor mixing
M can be configured as LR sum, Wedge, or Aux-Fed Sub or C master
Recording capable with channel direct outputs
Matrix external inputs with level trims and common input capability
Stereo channel line inputs can be independently routed to LR
Stereo channel mic input breakpoints for cross patching into matrix
Responsive 4 band, 2 sweep EQ
100Hz channel high pass filters
Individual phantom power and polarity switching
Dedicated channel, master and stereo monitor meters
Internal jumper plugs for pre/post-EQ aux, direct out and other options
Mutes, meters and AFL on all fader masters
Assignable talkback
1kHz oscillator and pink noise generator
2-track monitoring and replay to LR
Headphones and local monitor outputs
Electronically balanced XLR outputs with +26dBu drive capability
Preamp 74dB range with +34dBu input capability for mic or line
Ultra low noise mix head amp design
Internal power supply with socket for MPS12 backup supply (16ch to 32ch models)
External RPS11 power supply and socket for backup supply (40ch model only)
100mm dust protected faders
Metal jacks, gold-plated XLRs, sealed pots and switches
Individual circuit card assembly with nutted pots
Sys-Link V2 console input/output linking option
4-pin XLR lamp sockets – Allen & Heath LED lamp available
