Το Rai Penta δουλεύει αβίαστα με οποιαδήποτε συσκευή λόγω της χαμηλής σύνθετης αντίστασης και της υψηλής ευαισθησίας του, αλλά για να απολαύσετε πραγματικά τις δυνατότητες της προσεκτικά συντονισμένης σειράς οδηγών, προτείνουμε μια πηγή υψηλής ανάλυσης. Η απόκριση είναι εξαιρετικά υψηλή ανάλυση και είναι πάνω από οποιοδήποτε πιστοποιητικό ή πρότυπο.

PENTA HYBRID DRIVER TECHNOLOGY

The Penta Hybrid technology enables us to deliver harmonized sound frequencies without overlay of phase issues. For sound from the drivers to reach your eardrums it has to pass from through the housing / nozzle / eartip assembly. The seamless functioning of 5 drivers is enabled by the very specific and precise length of each sound tube which basically determines the air volume in front of each driver in particular.Our design eliminates imperfections that you can find in regular plastic Tube and Dampener systems, which are commonly used in multi driver assembly.

PRECISION MILLED INDIVIDUAL SOUND BORES

METAL SOUND TUBES MECHANISM

precision milled for accurate high res sound reproduction

PRESSURE EQUALIZATION SYSTEM (PES)

Airflow control helps regulate internal chamber pressure trough our finely tuned PES design in front and behind the driver assembly.

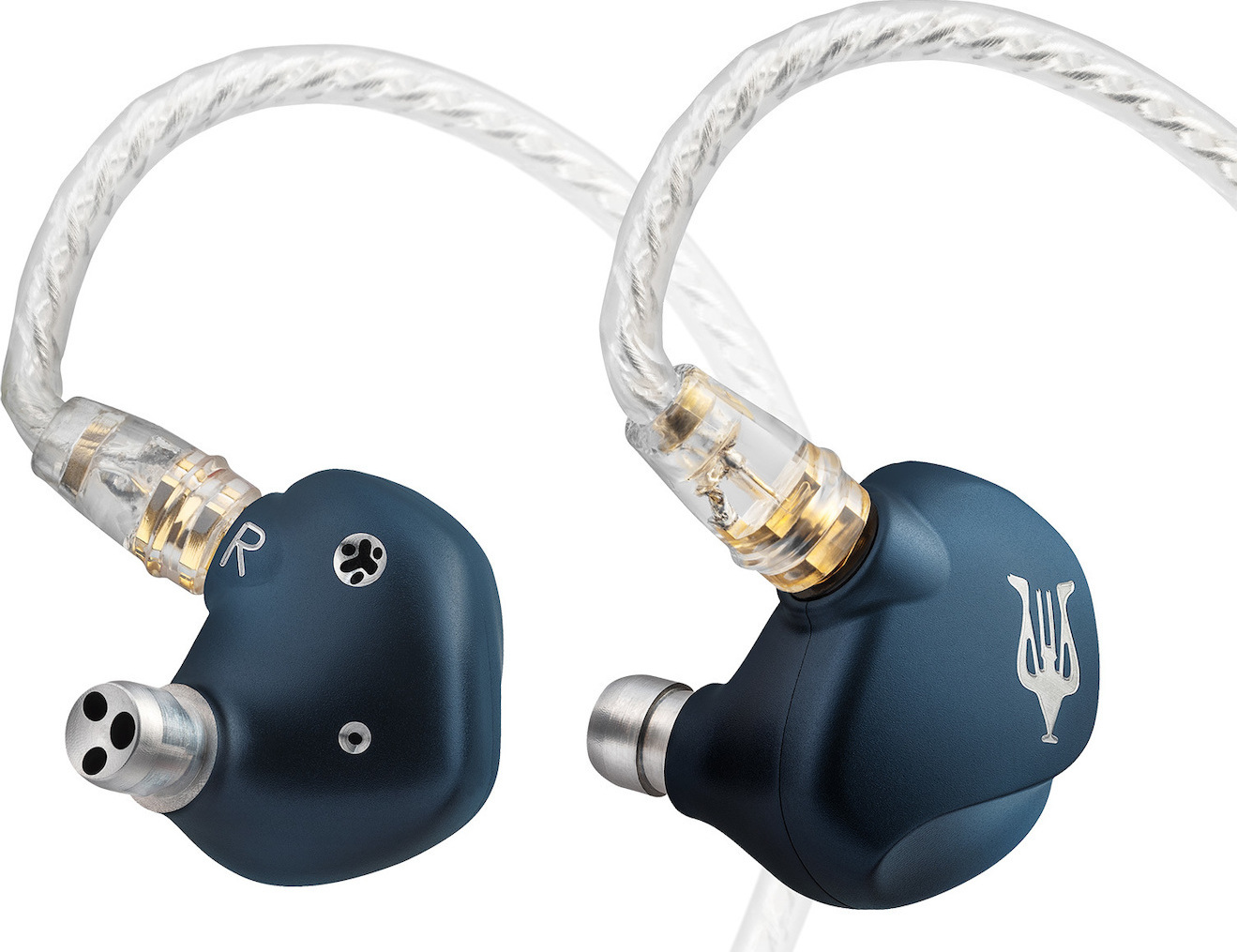

FULL METAL CNC SCULPTED CHASSIS

The high precision CNC aluminium chassis, skillfully milled from solid aluminium, creates the perfect space for the sound to be precisely channeled to your inner ear directly and without distortion.

MILLED LOGO SHOWS THE ALUMINIUM MATERIAL UNDER THE ANODIZING

ANODIZED SURFACE

SUPER HIGH RESOLUTION SOUND COMPATIBLE

A balanced sound signature with impeccable micro-detailing provides unrivaled realism all across the wide frequency range, from 4Hz to 45 kHz.

A TOP QUALITY CABLE TO BRING OUT THE BEST IN RAI PENTA

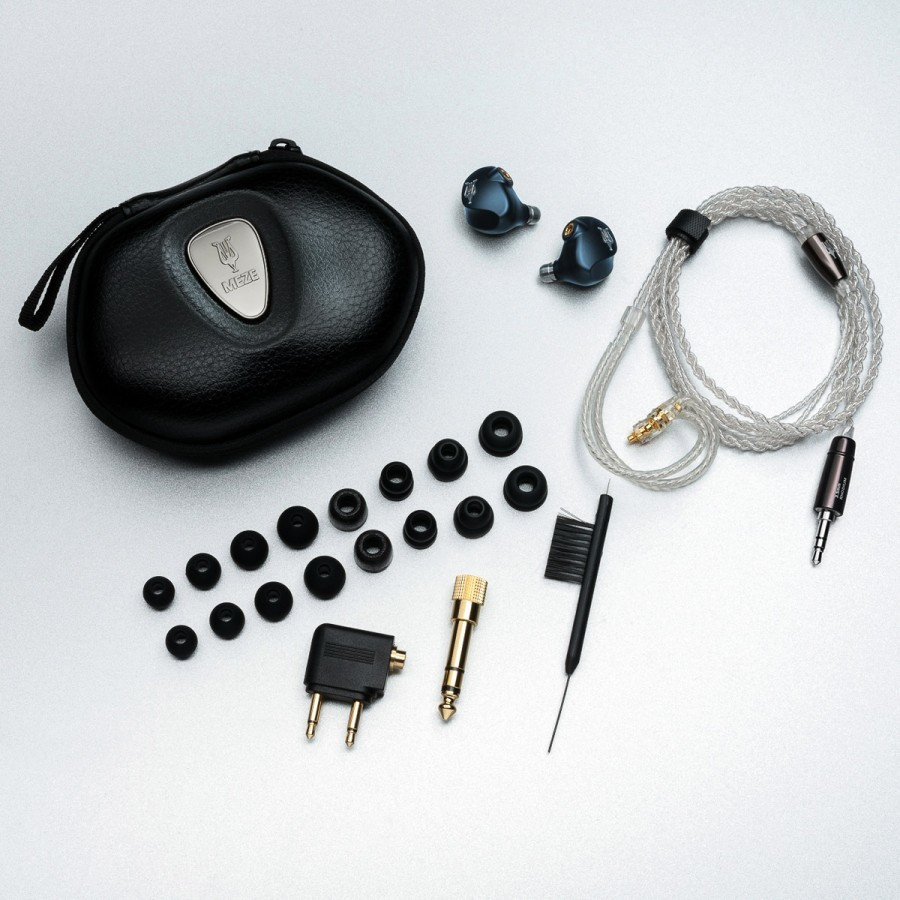

ACCESSORIES

• MMCX braided cables made of silver plated copper

custom wires ending in high quality 3.5mm

• Hard Case: protective EVA case with Meze Audio metal logo

• 4 pairs of soft silicone eartips XS, S, M, L

• 1 double flanged eartips

• 2 deep insertion double flanged eartips

• 1 pair of comply foam eartips

• 3.5mm to 6.3mm adapter

• airplane 2 pin adapter

• cleaning tool

UPGRADE CABLES

MMCX braided cables made of silver plated copper

custom wires ending in balanced 2.5 mm TRRS balanced

and 4.4 balanced as extra accessories sold separately.

TECHNICAL SPECIFICATIONS

Driver: PENTA-HYBRID DRIVER

(4 x Customized Balanced Armature and 1 x Dynamic

Driver working harmoniously together)

Frequency Range: 4Hz – 45kHz

Impedance: 20Ω

Sensitivity: 110dB SPL/1mW Sensitivity

Max Input Power: 30mW

Distortion: <1%

Stock cables: MMCX connector ending in 3.5mm, Rhodium plated

Upgrade cables: MMCX connector ending in

2.5mm TRRS balanced and 4.4mm balanced as extra accessories

Warranty period: 2 years
